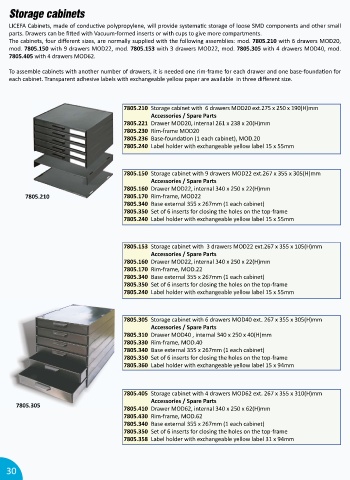

Storage cabinets

LICEFA Cabinets, made of conduc ve polypropylene, will provide systema c storage of loose SMD components and other small

parts. Drawers can be fi ed with Vacuum-formed inserts or with cups to give more compartments.

The cabinets, four different sizes, are normally supplied with the following assemblies: mod. 7805.210 with 6 drawers MOD20,
mod. 7805.150 with 9 drawers MOD22, mod. 7805.153 with 3 drawers MOD22, mod. 7805.305 with 4 drawers MOD40, mod.
7805.405 with 4 drawers MOD62.

To assemble cabinets with another number of drawers, it is needed one rim-frame for each drawer and one base-founda on for
each cabinet. Transparent adhesive labels with exchangeable yellow paper are available in three different size.

7805.210 Storage cabinet with 6 drawers MOD20 ext.275 x 250 x 190(H)mm
Accessories / Spare Parts
7805.221 Drawer MOD20, internal 261 x 238 x 20(H)mm
7805.230 Rim-frame MOD20
7805.236 Base-founda on (1 each cabinet), MOD.20
7805.240 Label holder with exchangeable yellow label 15 x 55mm

7805.150 Storage cabinet with 9 drawers MOD22 ext.267 x 355 x 305(H)mm
Accessories / Spare Parts
7805.160 Drawer MOD22, internal 340 x 250 x 22(H)mm
7805.210 7805.170 Rim-frame, MOD22
7805.340 Base external 355 x 267mm (1 each cabinet)
7805.350 Set of 6 inserts for closing the holes on the top-frame
7805.240 Label holder with exchangeable yellow label 15 x 55mm

7805.153 Storage cabinet with 3 drawers MOD22 ext.267 x 355 x 105(H)mm
Accessories / Spare Parts
7805.160 Drawer MOD22, internal 340 x 250 x 22(H)mm
7805.170 Rim-frame, MOD.22
7805.340 Base external 355 x 267mm (1 each cabinet)
7805.350 Set of 6 inserts for closing the holes on the top-frame
7805.240 Label holder with exchangeable yellow label 15 x 55mm

7805.305 Storage cabinet with 6 drawers MOD40 ext. 267 x 355 x 305(H)mm
Accessories / Spare Parts
7805.310 Drawer MOD40 , internal 340 x 250 x 40(H)mm
7805.330 Rim-frame, MOD.40
7805.340 Base external 355 x 267mm (1 each cabinet)
7805.350 Set of 6 inserts for closing the holes on the top-frame
7805.360 Label holder with exchangeable yellow label 15 x 94mm

7805.405 Storage cabinet with 4 drawers MOD62 ext. 267 x 355 x 310(H)mm
Accessories / Spare Parts
7805.305
7805.410 Drawer MOD62, internal 340 x 250 x 62(H)mm
7805.430 Rim-frame, MOD.62
7805.340 Base external 355 x 267mm (1 each cabinet)
7805.350 Set of 6 inserts for closing the holes on the top-frame
7805.358 Label holder with exchangeable yellow label 31 x 94mm
