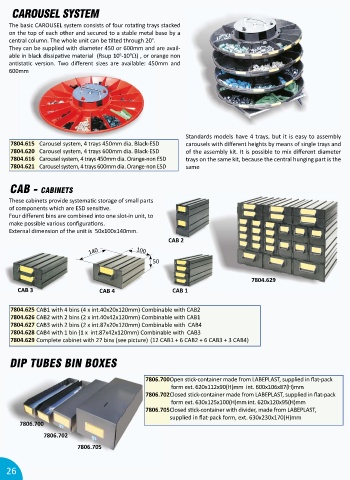

Page 26 - ITECO Catalogue 2024

CAROUSEL SYSTEM

The basic CAROUSEL system consists of four rota ng trays stacked

on the top of each other and secured to a stable metal base by a

central column. The whole unit can be lted through 20°.
They can be supplied with diameter 450 or 600mm and are avail-

6
able in black dissipa ve material (Rsup 10 -10 Ω) , or orange non
9

an sta c version. Two different sizes are available: 450mm and
600mm

Standards models have 4 trays, but it is easy to assembly

7804.615 Carousel system, 4 trays 450mm dia. Black-ESD carousels with different heights by means of single trays and

7804.620 Carousel system, 4 trays 600mm dia. Black-ESD of the assembly kit. It is possible to mix different diameter
7804.616 Carousel system, 4 trays 450mm dia. Orange-non ESD trays on the same kit, because the central hunging part is the
7804.621 Carousel system, 4 trays 600mm dia. Orange-non ESD same

CAB - CABINETS
These cabinets provide systema c storage of small parts

of components which are ESD sensi ve.

Four different bins are combined into one slot-in unit, to

make possible various configura ons.
External dimension of the unit is 50x100x140mm.
CAB 2
140 100
50

7804.629
CAB 3 CAB 4 CAB 1

7804.625 CAB1 with 4 bins (4 x int.40x20x120mm) Combinable with CAB2
7804.626 CAB2 with 2 bins (2 x int.40x42x120mm) Combinable with CAB1
7804.627 CAB3 with 2 bins (2 x int.87x20x120mm) Combinable with CAB4
7804.628 CAB4 with 1 bin (1 x int.87x42x120mm) Combinable with CAB3
7804.629 Complete cabinet with 27 bins (see picture) (12 CAB1 + 6 CAB2 + 6 CAB3 + 3 CAB4)

DIP TUBES BIN BOXES

7806.700Open s ck-container made from LABEPLAST, supplied in fl at-pack
form ext. 620x112x90(H)mm int. 600x106x87(H)mm
7806.702Closed s ck-container made from LABEPLAST, supplied in fl at-pack
form ext. 630x125x100(H)mm int. 620x120x95(H)mm
7806.705Closed s ck-container with divider, made from LABEPLAST,
supplied in flat-pack form, ext. 630x230x170(H)mm

7806.700
7806.702
7806.705
