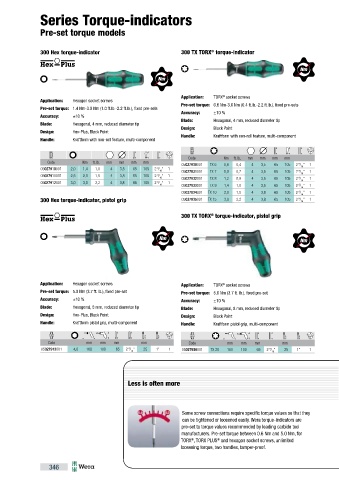

Series Torque-indicators

Pre-set torque models

®
300 Hex torque-indicator 300 TX TORX torque-indicator

Application: TORX socket screws
®
Application: Hexagon socket screws
Pre-set torque: 0.6 Nm-3.0 Nm (0.4 ft.lb.-2.2 ft.lb.), fixed pre-sets
Pre-set torque: 1.4 Nm-3.0 Nm (1.0 ft.lb.-2.2 ft.lb.), fixed pre-sets
Accuracy: ±10 %
Accuracy: ±10 %
Blade: Hexagonal, 4 mm, reduced diameter tip Blade: Hexagonal, 4 mm, reduced diameter tip
Design: Black Point
Design: Hex-Plus, Black Point
Handle: Kraftform with non-roll feature, multi-component
Handle: Kraftform with non-roll feature, multi-component
Code Nm ft. lb. mm mm mm mm
Code Nm ft. lb. mm mm mm mm
05027930001 TX 6 0,6 0,4 4 3,5 65 105 2 / " 1
9
16
9
05027910001 2,0 1,4 1,0 4 3,5 65 105 2 / " 1
16 05027931001 TX 7 0,9 0,7 4 3,5 65 105 2 / " 1
9
16
9
05027911001 2,5 2,0 1,5 4 3,8 65 105 2 / " 1 05027932001 TX 8 1,2 0,9 4 3,5 65 105 2 / " 1
16
9
16
05027912001 3,0 3,0 2,2 4 3,8 65 105 2 / " 1 05027933001 TX 9 1,4 1,0 4 3,5 65 105 2 / " 1
9
9
16
16
05027934001 TX 10 2,0 1,5 4 3,8 65 105 2 / " 1
9
16
300 Hex torque-indicator, pistol grip 05027935001 TX 15 3,0 2,2 4 3,8 65 105 2 / " 1
9
16
300 TX TORX torque-indicator, pistol grip
®
Application: Hexagon socket screws Application: TORX socket screws
®
Pre-set torque: 5.0 Nm (3.7 ft. lb.), fixed pre-set Pre-set torque: 5.0 Nm (3.7 ft. lb.), fixed pre-set
Accuracy: ±10 % Accuracy: ±10 %
Blade: Hexagonal, 8 mm, reduced diameter tip Blade: Hexagonal, 8 mm, reduced diameter tip
Design: Hex-Plus, Black Point Design: Black Point
Handle: Kraftform pistol grip, multi-component Handle: Kraftform pistol grip, multi-component

Code mm mm mm mm Code mm mm mm mm
05027913001 4,0 160 100 65 2 / " 25 1" 1 05027936001 TX 20 160 100 65 2 / " 25 1" 1
9
9
16
16

Less is often more

Some screw connections require specific torque values so that they
can be tightened or loosened easily. Wera torque-indicators are
pre-set to torque values recommended by leading carbide tool
manufacturers. Pre-set torque between 0.6 Nm and 5.0 Nm, for
TORX , TORX PLUS and hexagon socket screws, unlimited
®
®
loosening torque, two handles, tamper-proof.
