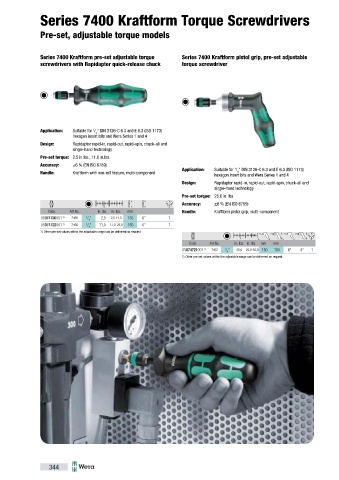

Page 348 - WERA katalógus

Series 7400 Kraftform Torque Screwdrivers

Pre-set, adjustable torque models

Series 7400 Kraftform pre-set adjustable torque Series 7400 Kraftform pistol grip, pre-set adjustable
screwdrivers with Rapidaptor quick-release chuck torque screwdriver

Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173)
1
4
hexagon insert bits and Wera Series 1 and 4
Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and
single-hand technology
Pre-set torque: 2.5 in.lbs., 11.0 in.lbs.
Accuracy: ±6 % (EN ISO 6789)
Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173)
1
Handle: Kraftform with non-roll feature, multi-component hexagon insert bits and Wera Series 1 and 4
4
Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and
single-hand technology
Pre-set torque: 25.0 in. lbs.
Accuracy: ±6 % (EN ISO 6789)
Code Art.No. in. lbs. in. lbs. mm Handle: Kraftform pistol grip, multi-component
05074720001 1) 7465 1 / " 2,5 2,5-11,5 155 6" 1
4
05074722001 1) 7466 1 / " 4 11,0 11,0-29,0 155 6" 1
1) Other pre-set values within the adjustable range can be delivered on request

Code Art.No. in. lbs. in. lbs. mm mm
05074721001 1) 7467 1 / " 25,0 25,0-55,0 150 100 6" 4" 1
4
1) Other pre-set values within the adjustable range can be delivered on request

344
