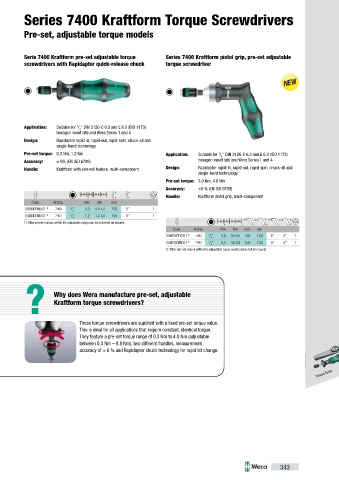

Series 7400 Kraftform Torque Screwdrivers

Pre-set, adjustable torque models

Serie 7400 Kraftform pre-set adjustable torque Series 7400 Kraftform pistol grip, pre-set adjustable
screwdrivers with Rapidaptor quick-release chuck torque screwdriver

Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173)
1
4
hexagon insert bits and Wera Series 1 and 4
Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and
single-hand technology
Pre-set torque: 0.3 Nm, 1.2 Nm Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173)
1
4
Accuracy: ± 6% (EN ISO 6789) hexagon insert bits and Wera Series 1 and 4
Handle: Kraftform with non-roll feature, multi-component Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and
single-hand technology
Pre-set torque: 3.0 Nm, 4.0 Nm
Accuracy: ±6 % (EN ISO 6789)
Handle: Kraftform pistol grip, multi-component
Code Art.No. Nm Nm mm
05074715001 1) 7460 1 / " 0,3 0,3-1,2 155 6" 1
4
05074716001 1) 7461 1 / " 1,2 1,2-3,0 155 6" 1
4
1) Other pre-set values within the adjustable range can be delivered on request
Code Art.No. Nm Nm mm mm
05074717001 1) 7462 1 / " 3,0 3,0-6,0 150 100 6" 4" 1
4
05074728001 1) 7463 1 / " 4,0 4,0-8,8 150 100 6" 4" 1
4
1) Other pre-set values within the adjustable range can be delivered on request

? Why does Wera manufacture pre-set, adjustable

Kraftform torque screwdrivers?

These torque screwdrivers are supplied with a fixed pre-set torque value.
This is ideal for all applications that require constant, identical torque.
They feature a pre-set torque range of 0.3 Nm to 4.0 Nm (adjustable
between 0.3 Nm – 8.8 Nm), two different handles, measurement
accuracy of ± 6 % and Rapidaptor chuck technology for rapid bit change.
