Page 343 - WERA katalógus

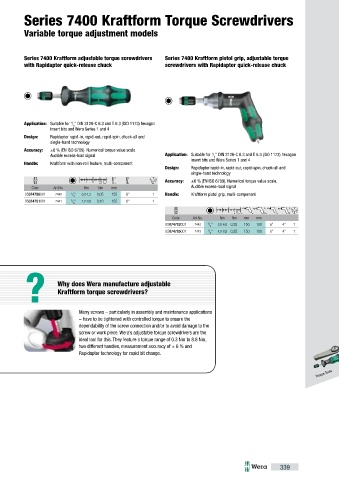

Series 7400 Kraftform Torque Screwdrivers

Variable torque adjustment models

Series 7400 Kraftform adjustable torque screwdrivers Series 7400 Kraftform pistol grip, adjustable torque
with Rapidaptor quick-release chuck screwdrivers with Rapidaptor quick-release chuck

1
Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173) hexagon
4
insert bits and Wera Series 1 and 4
Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and
single-hand technology
Accuracy: ±6 % (EN ISO 6789). Numerical torque value scale.
1
Audible excess-load signal Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173) hexagon
4
insert bits and Wera Series 1 and 4
Handle: Kraftform with non-roll feature, multi-component
Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and
single-hand technology
Accuracy: ±6 % (EN ISO 6789). Numerical torque value scale.
Code Art.No. Nm Nm mm Audible excess-load signal
05074700001 7440 1 / " 0,3-1,2 0,05 155 6" 1 Handle: Kraftform pistol grip, multi-component
4
05074701001 7441 1 / " 1,2-3,0 0,10 155 6" 1
4
Code Art.No. Nm Nm mm mm
05074702001 7442 1 / " 4 3,0-6,0 0,25 150 100 6" 4" 1
05074705001 7443 1 / " 4,0-8,8 0,25 150 100 6" 4" 1
4

? Why does Wera manufacture adjustable

Kraftform torque screwdrivers?

Many screws – particularly in assembly and maintenance applications
– have to be tightened with controlled torque to ensure the
dependability of the screw connection and/or to avoid damage to the
screw or work piece. Wera’s adjustable torque screwdrivers are the
ideal tool for this. They feature a torque range of 0.3 Nm to 8.8 Nm,
two different handles, measurement accuracy of ± 6 % and
Rapidaptor technology for rapid bit change.

Torque Tools

339
