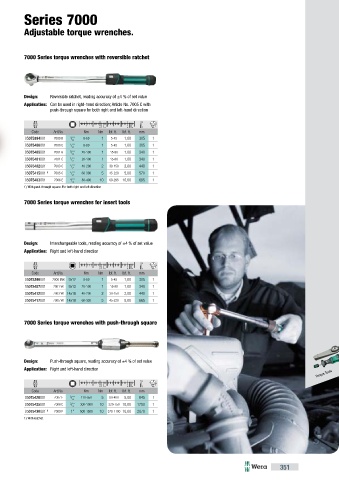

Page 355 - WERA katalógus

Series 7000

Adjustable torque wrenches.

7000 Series torque wrenches with reversible ratchet

Design: Reversible ratchet, reading accuracy of ±4 % of set value
Application: Can be used in right-hand direction; Article No. 7005 C with
push-through square for both right and left-hand direction

Code Art.No. Nm Nm lbf. ft. lbf. ft. mm
05075394001 7000 B 3 / " 8-60 1 5-45 1,00 305 1
8
05075400001 7000 C 1 / " 8-60 1 5-45 1,00 305 1
2
05075405001 7001 B 3 / " 20-100 1 15-80 1,00 340 1
8
05075401001 7001 C 1 / " 20-100 1 15-80 1,00 340 1
2
05075402001 7003 C 1 / " 40-200 2 30-150 2,00 440 1
2
05075415001 1) 7005 C 1 / " 60-300 5 45-220 5,00 570 1
2
05075403001 7006 E 3 / " 80-400 10 60-295 10,00 685 1
4
1) With push-through square. For both right and left direction
7000 Series torque wrenches for insert tools

Design: Interchangeable tools, reading accuracy of ±4 % of set value
Application: Right and left-hand direction

Code Art.No. Nm Nm lbf. ft. lbf. ft. mm
05075396001 7000 BVK 9x12 8-60 1 5-45 1,00 305 1
05075407001 7001 VK 9x12 20-100 1 15-80 1,00 340 1
05075412001 7003 VK 14x18 40-200 2 30-150 2,00 440 1
05075417001 7005 VK 14x18 60-330 5 45-220 5,00 665 1

7000 Series torque wrenches with push-through square

Design: Push-through square, reading accuracy of ±4 % of set value
Application: Right and left-hand direction
Torque Tools

Code Art.No. Nm Nm lbf. ft. lbf. ft. mm
05075420001 7007 E 3 / " 110-550 5 80-400 5,00 845 1
4
05075425001 7008 E 3 / " 300-1000 10 220-750 10,00 1750 1
4
05075430001 1) 7009 F 1" 500-1500 10 370-1100 10,00 2070 1
1) With ratchet
