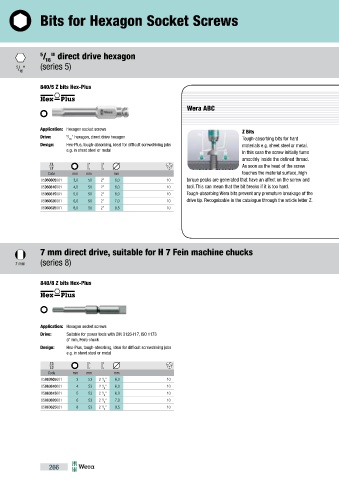

Bits for Hexagon Socket Screws

5 / " direct drive hexagon
16
5 / " (series 5)
16

840/5 Z bits Hex-Plus

Wera ABC

Application: Hexagon socket screws
Z Bits
Drive: 5 / " hexagon, direct drive hexagon Tough-absorbing bits for hard
16
Design: Hex-Plus, tough-absorbing, ideal for diffi cult screwdriving jobs materials e.g. sheet steel or metal.
e.g. in sheet steel or metal In this case the screw initially turns
smoothly inside the defi ned thread.
As soon as the head of the screw
Code mm mm mm touches the material surface, high
05060605001 3,0 50 2" 6,0 10 torque peaks are generated that have an aff ect on the screw and
05060610001 4,0 50 2" 6,0 10 tool. This can mean that the bit breaks if it is too hard.
05060615001 5,0 50 2" 6,0 10 Tough-absorbing Wera bits prevent any premature breakage of the
05060620001 6,0 50 2" 7,0 10 drive tip. Recognisable in the catalogue through the article letter Z.
05060625001 8,0 50 2" 9,5 10

7 mm direct drive, suitable for H 7 Fein machine chucks

7 mm (series 8)

840/8 Z bits Hex-Plus

Application: Hexagon socket screws
Drive: Suitable for power tools with DIN 3126-H 7, ISO 1173
(7 mm, Fein) chuck
Design: Hex-Plus, tough-absorbing, ideal for diffi cult screwdriving jobs
e.g. in sheet steel or metal

Code mm mm mm
1
05063605001 3 53 2 / " 6,0 10
8
05063610001 4 53 2 / " 6,0 10
1
8
05063615001 5 53 2 / " 6,0 10
1
8
05063620001 6 53 2 / " 7,0 10
1
8
1
05063625001 8 53 2 / " 9,5 10
8
