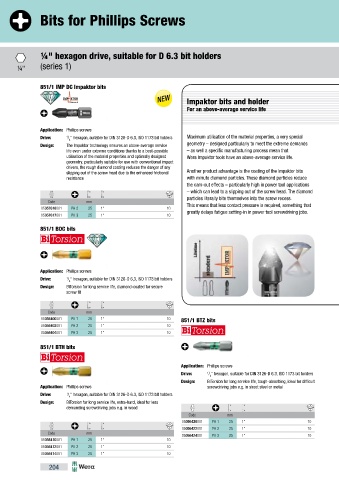

Bits for Phillips Screws

¼" hexagon drive, suitable for D 6.3 bit holders

¼" (series 1)

851/1 IMP DC Impaktor bits

Impaktor bits and holder
For an above-average service life

Application: Phillips screws
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders Maximum utilisation of the material properties, a very special
4
Design: The Impaktor technology ensures an above-average service geometry – designed particularly to meet the extreme demands
life even under extreme conditions thanks to a best-possible – as well a specifi c manufacturing process mean that
utilisation of the material properties and optimally designed Wera Impaktor tools have an above-average service life.
geometry, particularly suitable for use with conventional impact
drivers, the rough diamond coating reduces the danger of any
slipping out of the screw head due to the enhanced frictional Another product advantage is the coating of the Impaktor bits
resistance with minute diamond particles. These diamond particles reduce
the cam-out eff ects – particularly high in power tool applications
– which can lead to a slipping out of the screw head. The diamond
particles literally bite themselves into the screw recess.
Code mm This means that less contact pressure is required, something that
05057616001 PH 2 25 1" 10
greatly delays fatigue setting-in in power tool screwdriving jobs.
05057617001 PH 3 25 1" 10

851/1 BDC bits

Application: Phillips screws
Drive: 1 / " hexagon, suitable for DIN 3126-D 6,3, ISO 1173 bit holders
4
Design: BiTorsion for long service life, diamond-coated for secure
screw fi t

Code mm
05056400001 PH 1 25 1" 10 851/1 BTZ bits
05056402001 PH 2 25 1" 10
05056404001 PH 3 25 1" 10

851/1 BTH bits

Application: Phillips screws
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4
Design: BiTorsion for long service life, tough-absorbing, ideal for diffi cult
Application: Phillips screws screwdriving jobs e.g. in sheet steel or metal
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4
Design: BiTorsion for long service life, extra-hard, ideal for less
demanding screwdriving jobs e.g. in wood
Code mm
05056420001 PH 1 25 1" 10
05056422001 PH 2 25 1" 10
Code mm
05056424001 PH 3 25 1" 10
05056410001 PH 1 25 1" 10

05056412001 PH 2 25 1" 10
05056414001 PH 3 25 1" 10

204
