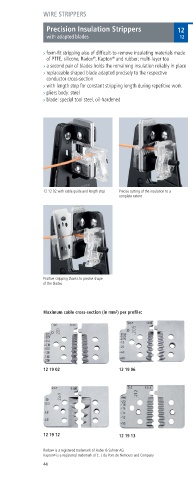

WIRE STRIPPERS

Precision Insulation Strippers 12
with adapted blades 12

> form fit stripping also of difficult to remove insulating materials made
of PTFE, silicone, Radox , Kapton and rubber; multi layer too
®
®
> a second pair of blades holds the remaining insulation reliably in place
> replaceable shaped blade adapted precisely to the respective
conductor cross section
> with length stop for constant stripping length during repetitive work 12 12 02
> pliers body: steel
> blade: special tool steel, oil hardened

12 12 12

12 12 02 with cable guide and length stop Precise cutting of the insulation to a
complete extent

12 12 02
with additional cable guide for exact positioning of the cable in the stripping
area of the blade
12 12 11 / 12 12 12 for solar cables
®
specially adapted to multi layered and RADOX insulations; with additional cable
support for a better centring of multi layer insulated conductors in the stripping profiles
12 12 13 / 12 12 14
specially for cables according to US specifications (AWG)
Positive stripping thanks to precise shape
of the blades

Maximum cable cross-section (in mm²) per profile:

12 19 02 12 19 06 12 19 10 12 19 11

12 19 12 12 19 13 12 19 14

Radox ® is a registered trademark of Huber & Suhner AG
Kapton ® is a registered trademark of E I du Pont de Nemours and Company
