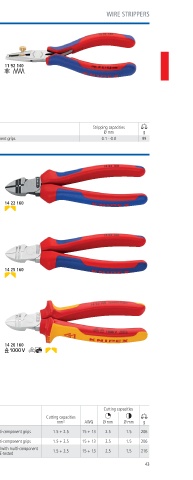

WIRE STRIPPERS

Electronics Wire Stripper 11
9

> for single, multiple and fine stranded cables having a diameter
from 0 1 up to 0 8 mm, with plastic or rubber insulation
> easy adjustment to the required diameter of solid or stranded 11 92 140
wire with knurled screw and lock nut
> with opening spring
> the mirror polish together with a fine film of oil offer effective
rust protection – no circuit faults caused by peeling chrome from
plated tools
> Special tool steel, forged, oil hardened

EAN Stripping capacities
Article No 003773 mm Head Handles Ø mm g
11 92 140 016908 1 0 mirror polished with multi component grips 0 1 0 8 99

Diagonal Insulation Strippers 14

With long cutting edges
*KIJ EWVVKPI ECRCEKV[ FWG VQ JKIJ NGXGTCIG LQKPV
> precision stripping holes for single conductors of 1 5 and 2 5 mm²
> convenient cutting of NYM cables up to 5 x 2 5 mm² 14 22 160
> long tips for ultra fine cutting work also in confined areas
induction hardened precision blades,
> cutting edge hardness approx 60 HRC
> 8anadium steel, forged, multi stage oil hardened

14 25 160

elongated cutting edge
14 26 160

improved transmission ratio

Cutting capacities
EAN Cutting capacities
Article No 003773 mm Pliers Head Handles mm² AWG Ø mm Ø mm g
black
14 22 160 03 988 160 polished with multi component grips 1 5 2 5 15 13 2 5 1 5 206
atramentized
14 25 160 028697 160 chrome plated with multi component grips 1 5 2 5 15 13 2 5 1 5 206
14 26 160 0 0279 160 chrome plated insulated with multi component 1 5 2 5 15 13 2 5 1 5 216
grips, 8DE tested
43
