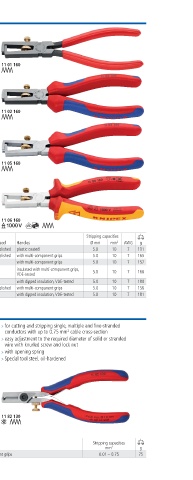

WIRE STRIPPERS

Insulation Strippers 11

> for single, multiple and fine stranded conductors with plastic
or rubber insulation max 5 0 mm dia or resp 10 mm² cable
cross section
> easy adjustment to the required diameter of solid or stranded 11 01 160
wire with knurled screw and lock nut
> Special tool steel, forged, oil hardened

11 02 160

11 05 160

11 06 160

EAN Stripping capacities
Article No 003773 mm Pliers Head Handles Ø mm mm 2 AWG g
11 01 160 013556 160 black atramentized polished plastic coated 5 0 10 7 131
11 02 160 023180 160 black atramentized polished with multi component grips 5 0 10 7 165
11 05 160 039570 160 chrome plated with multi component grips 5 0 10 7 157
insulated with multi component grips,
11 06 160 021933 160 chrome plated 8DE tested 5 0 10 7 166
11 07 160 015 99 160 chrome plated with dipped insulation, 8DE tested 5 0 10 7 180
11 12 160 03 96 160 black atramentized polished with multi component grips 5 0 10 7 156
11 17 160 015505 160 chrome plated with dipped insulation, 8DE tested 5 0 10 7 181

Electronics Wire Stripping Shears 11 > for cutting and stripping single, multiple and fine stranded
8 conductors with up to 0 75 mm² cable cross section
> easy adjustment to the required diameter of solid or stranded
wire with knurled screw and lock nut
> with opening spring
> Special tool steel, oil hardened

11 82 130

EAN Stripping capacities
Article No 003773 mm Head Handles mm 2 g
11 82 130 0716 8 130 polished with multi component grips 0 01 – 0 75 75
