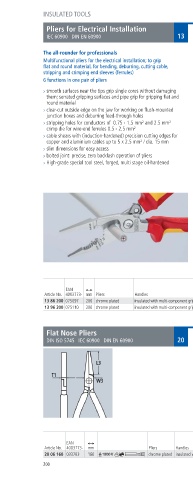

Page 377 - KNIPEX katalógus

INSULATED TOOLS

Pliers for Electrical Installation
IEC 60900 DIN EN 60900 13

The all-rounder for professionals
Multifunctional pliers for the electrical installation; to grip
flat and round material, for bending, deburring, cutting cable,
UVTKRRKPI CPF ETKORKPI GPF UNGGXGU HGTTWNGU 13 86 200
6 functions in one pair of pliers
> smooth surfaces near the tips grip single cores without damaging
them; serrated gripping surfaces and pipe grip for gripping flat and
round material
> clear cut outside edge on the jaw for working on flush mounted
junction boxes and deburring feed through holes
> stripping holes for conductors of 0 75 1 5 mm² and 2 5 mm²
crimp die for wire end ferrules 0 5 2 5 mm²
> cable shears with (induction hardened) precision cutting edges for
copper and aluminium cables up to 5 x 2 5 mm² / dia 15 mm
> slim dimensions for easy access 13 96 200
> bolted joint: precise, zero backlash operation of pliers
> High grade special tool steel, forged, multi stage oil hardened

Product video
13 96 200
in case of models with opening spring integrated in the joint,
the activated locking lever keeps the cutting edges closed
while other functions remain active; the intelligent latching
mechanism enables you to bgrip‘ without opening the pliers
The cutting edge remains closed and protected

Cutting capacities
Stripping capacity
EAN for cross sections Capacity
Article No 003773 mm Pliers Handles Ø mm mm² mm² mm² g
13 86 200 075097 200 chrome plated insulated with multi component grips, VDE tested 15 50 0 75 1 5 / 2 5 0 5 2 5 280
13 96 200 075110 200 chrome plated insulated with multi component grips, VDE tested 15 50 0 75 1 5 / 2 5 0 5 2 5 280

Flat Nose Pliers > short, flat jaws
DIN ISO 5745 IEC 60900 DIN EN 60900 20 > knurled gripping surfaces
> Chrome vanadium electric steel, forged, oil hardened

20 06 160

Dimensions
EAN L3 W3 T1
Article No 003773 mm Pliers Handles mm mm mm g
20 06 160 033783 160 chrome plated insulated with multi component grips,VDE tested 30 0 17 0 9 5 176
