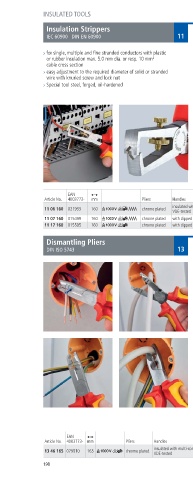

Page 373 - KNIPEX katalógus

INSULATED TOOLS

Insulation Strippers
IEC 60900 DIN EN 60900 11

> for single, multiple and fine stranded conductors with plastic
or rubber insulation max 5 0 mm dia or resp 10 mm²
cable cross section
> easy adjustment to the required diameter of solid or stranded
wire with knurled screw and lock nut 11 06 160
> Special tool steel, forged, oil hardened

11 07 160

EAN Stripping capacities Stripping capacities
Article No 003773 mm Pliers Handles Ø mm mm² AWG g
insulated with multi component grips,
11 06 160 021933 160 chrome plated VDE tested 5 0 10 7 166
11 07 160 015 99 160 chrome plated with dipped insulation, VDE tested 5 0 10 7 180
11 17 160 015505 160 chrome plated with dipped insulation, VDE tested 5 0 10 7 181

Dismantling Pliers Multifunctional – cutting, dismantling and stripping
DIN ISO 5743 13 with one pair of pliers.
(QT VKOG UCXKPI FKUOCPVNKPI CPF UVTKRRKPI QH CNN EQOOQP
round and damp-proof installation cables (e.g. NYM cable)
Simplified access especially to deep mounted flush
sockets thanks to slim head design and optimally angled
cable sheath cutter
Strip cables easily and without damage thanks to circular
cutting edge with depth limit

> suitable for universal use: precision wire stripping holes for
conductors from 1 5 and 2 5 mm²
> with diagonal cutters for cutting and trimming conductors,
wires, small screws and nails
> all cutters additionally induction hardened to approx 61 HRC
for high wear resistance
> 30 % lighter than comparable pliers
> Vanadium steel, forged, multi stage oil hardened

13 46 165

EAN Dismantling capacities Stripping capacities
Article No 003773 mm Pliers Handles Ø mm Ø mm 2 Ø mm Ø mm g
insulated with multi component grips,
13 46 165 079910 165 chrome plated 8 13 1 5 / 2 5 3 2 2 2 190
VDE tested
198
