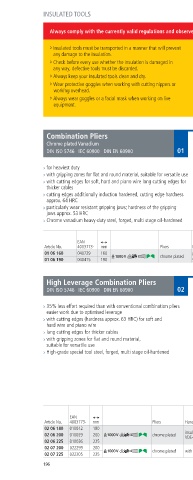

INSULATED TOOLS

Always comply with the currently valid regulations and observe the SAFETY INSTRUCTIONS given below:

> Insulated tools must be transported in a manner that will prevent > Make sure the workplace is clean and orderly, particularly when
any damage to the insulation you are working on live installations
> Check before every use whether the insulation is damaged in > Wear protective clothing and use SAFETY equipment
any way, defective tools must be discarded (e g insulating gloves, insulating mats, protective covers)
especially in confined working spaces
> Always keep your insulated tools clean and dry
> Use only a tool with suitable dimensions That will prevent
> Wear protective goggles when working with cutting nippers or
slipping on the workpiece and unintentional contact with
working overhead non insulated parts
> Always wear goggles or a facial mask when working on live
> Make sure that detached parts or cut off ends of conductors
equipment do not fall onto live parts

Combination Pliers
Chrome plated Vanadium
DIN ISO 5746 IEC 60900 DIN EN 60900 01

> for heaviest duty
> with gripping zones for flat and round material, suitable for versatile use
01 06 190
> with cutting edges for soft, hard and piano wire long cutting edges for
thicker cables
> cutting edges additionally induction hardened, cutting edge hardness
approx 6 HRC
> particularly wear resistant gripping jaws; hardness of the gripping
jaws approx 53 HRC
> Chrome vanadium heavy duty steel, forged, multi stage oil hardened

Cutting capacities
EAN
Article No 003773 mm Pliers Handles Ø mm Ø mm Ø mm mm² g
01 06 160 0 0729 160 insulated with multi component 2 0 1 5 10 0 16 201
chrome plated
01 06 190 0 0 15 190 grips, VDE tested 2 5 2 0 13 0 25 320

High Leverage Combination Pliers
DIN ISO 5746 IEC 60900 DIN EN 60900 02

> 35 % less effort required than with conventional combination pliers
easier work due to optimised leverage
> with cutting edges (hardness approx 63 HRC) for soft and
hard wire and piano wire 02 06 180
> long cutting edges for thicker cables
> with gripping zones for flat and round material,
suitable for versatile use
> High grade special tool steel, forged, multi stage oil hardened

02 07 225

Cutting capacities
EAN
Article No 003773 mm Pliers Handles Ø mm Ø mm Ø mm mm² g
02 06 180 010012 180 2 5 2 0 11 5 16 2 7
insulated with multi component grips,
02 06 200 010029 200 chrome plated VDE tested 2 8 2 2 13 0 25 3 3
02 06 225 010036 225 3 0 2 5 1 0 25 01
02 07 200 022299 200 2 8 2 2 13 0 25 380
chrome plated with dipped insulation, VDE tested
02 07 225 022305 225 3 0 2 5 1 0 25 86
196
