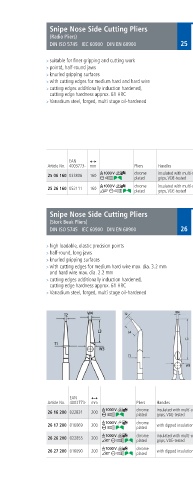

Page 379 - KNIPEX katalógus

INSULATED TOOLS

Snipe Nose Side Cutting Pliers
(Radio Pliers)
DIN ISO 5745 IEC 60900 DIN EN 60900 25

> suitable for finer gripping and cutting work
> pointd, half round jaws
> knurled gripping surfaces
25 06 160
> with cutting edges for medium hard and hard wire
> cutting edges additionally induction hardened,
cutting edge hardness approx 61 HRC
> Vanadium steel, forged, multi stage oil hardened

25 26 160
40°

Cutting capacities Dimensions
EAN L3 L W3 T1 W T2
Article No 003773 mm Pliers Handles Ø mm Ø mm mm mm mm mm mm mm g
25 06 160 033806 160 chrome insulated with multi component 2 5 1 6 50 0 16 5 9 0 3 0 2 5 1 6
plated grips, VDE tested
25 26 160 052111 160 chrome insulated with multi component 2 5 1 6 50 023 016 5 9 0 3 0 2 5 1
40° plated grips, VDE tested

Snipe Nose Side Cutting Pliers
(Stork Beak Pliers)
DIN ISO 5745 IEC 60900 DIN EN 60900 26

> high loadable, elastic precision points
> half round, long jaws
26 16 200
> knurled gripping surfaces

> with cutting edges for medium hard wire max dia 3 2 mm
and hard wire max dia 2 2 mm
> cutting edges additionally induction hardened,
cutting edge hardness approx 61 HRC
> Vanadium steel, forged, multi stage oil hardened

26 27 200
40°

Cutting capacities Dimensions
EAN L3 L T1 W3 W T2
Article No 003773 mm Pliers Handles Ø mm Ø mm mm mm mm mm mm mm g
26 16 200 022831 200 chrome insulated with multi component 3 2 2 2 73 0 9 5 17 5 3 0 2 5 206
plated grips, VDE tested
26 17 200 016069 200 chrome with dipped insulation, VDE tested 3 2 2 2 73 0 9 517 53 0 2 5 212
plated
chrome insulated with multi component
26 26 200 022855 200 3 2 2 2 73 0 23 0 9 5 17 5 3 0 2 5 20
40° plated grips, VDE tested
26 27 200 016090 200 chrome with dipped insulation, VDE tested 3 2 2 2 73 023 09 517 53 0 2 5 220
40° plated
201
