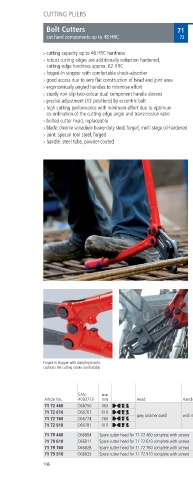

Page 189 - KNIPEX katalógus

CUTTING PLIERS

Bolt Cutters 71
cut hard components up to 48 HRC 72

> cutting capacity up to 8 HRC hardness
> robust cutting edges are additionally induction hardened,
cutting edge hardness approx 62 HRC
> forged in stopper with comfortable shock absorber
> good access due to very flat construction of head and joint area
> ergonomically angled handles to minimise effort
> sturdy non slip two colour dual component handle sleeves
> precise adjustment (12 positions) by eccentric bolt
> high cutting performance with minimum effort due to optimum
co ordination of the cutting edge angle and transmission ratio
> bolted cutter head, replaceable
> blade: chrome vanadium heavy duty steel, forged, multi stage oil hardened
> joint: special tool steel, forged
> handle: steel tube, powder coated

71 72 460 71 72 610 71 72 760 71 72 910

Forged in stopper with damping inserts:
cushions the cutting stroke comfortably

Cutting capacities
EAN HRC 19 HRC 0 HRC 8
Article No 003773 mm Head Handles Ø mm Ø mm Ø mm g
71 72 460 066750 60 8 6 5 2100
71 72 610 066767 610 9 8 7 2550
grey atramentized with multi component grips
71 72 760 06677 760 11 9 8 250
71 72 910 066781 910 13 10 9 950
71 79 460 06680 Spare cutter head for 71 72 60 complete with screws
71 79 610 066811 Spare cutter head for 71 72 610 complete with screws
71 79 760 066828 Spare cutter head for 71 72 760 complete with screws
71 79 910 066835 Spare cutter head for 71 72 910 complete with screws
106
