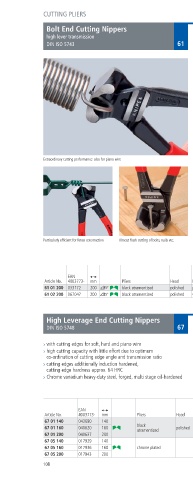

Page 193 - KNIPEX katalógus

CUTTING PLIERS

Bolt End Cutting Nippers Powerful, compact, comfortable
JKIJ NGXGT VTCPUOKUUKQP
> compared to conventional lever assisted end cutting nippers,
DIN ISO 5743 61
greater cutting capacity, less effort required and better handling
> for all classes of wire including piano wire
> exceptional cutting capacity due to high leverage joint
> cutting edges additionally induction hardened;
cutting edge hardness approx 6 HRC
> Vanadium steel, forged, multi stage oil hardened

61 02 200
with slim two colour multi component sleeves without collar for better handling
and easier transport; with large contact surface on the handles for better allotment
of pressure and more comfort at work

Extraordinary cutting performance: also for piano wire

61 01 200
85°

61 02 200
85°
Particularly efficient for fence construction Almost flush cutting of bolts, nails etc

Cutting capacities
EAN
Article No 003773 mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm g
61 01 200 033172 200 85° black atramentized polished plastic coated 1 0 6 0 0 3 5 3 0 35
61 02 200 0670 7 200 85° black atramentized polished with slim multi component grips 1 0 6 0 0 3 5 3 0 35

High Leverage End Cutting Nippers
DIN ISO 5748 67

> with cutting edges for soft, hard and piano wire
> high cutting capacity with little effort due to optimum
co ordination of cutting edge angle and transmission ratio
> cutting edges additionally induction hardened,
cutting edge hardness approx 6 HRC
> Chrome vanadium heavy duty steel, forged, multi stage oil hardened 67 01 200

Cutting capacities
EAN
Article No 003773 mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm g
67 01 140 0 3690 1 0 0 3 1 2 0 1 5 152
black
67 01 160 0 0620 160 polished plastic coated 5 3 2 5 2 0 237
atramentized
67 01 200 0 0637 200 5 0 3 8 3 0 2 5 318
67 05 140 017929 1 0 0 3 1 2 0 1 5 176
67 05 160 017936 160 chrome plated with multi component grips 5 3 2 5 2 0 266
67 05 200 0179 3 200 5 0 3 8 3 0 2 5 361
108
