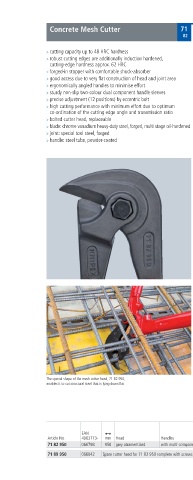

Page 191 - KNIPEX katalógus

CUTTING PLIERS

Concrete Mesh Cutter 71
82

> cutting capacity up to 8 HRC hardness 71 82 950
> robust cutting edges are additionally induction hardened,
cutting edge hardness approx 62 HRC
> forged in stopper with comfortable shock absorber
> good access due to very flat construction of head and joint area
> ergonomically angled handles to minimise effort
> sturdy non slip two colour dual component handle sleeves
> precise adjustment (12 positions) by eccentric bolt
> high cutting performance with minimum effort due to optimum
co ordination of the cutting edge angle and transmission ratio
> bolted cutter head, replaceable
> blade: chrome vanadium heavy duty steel, forged, multi stage oil hardened
> joint: special tool steel, forged
> handle: steel tube, powder coated

The special shape of the mesh cutter head, 71 82 950,
enables it to cut structural steel that is lying down flat

Cutting capacities
EAN HRC 19 HRC 0 HRC 8
Article No 003773 mm Head Handles Ø mm Ø mm Ø mm g
71 82 950 066798 950 grey atramentized with multi component grips 11 9 6 060
71 89 950 0668 2 Spare cutter head for 71 82 950 complete with screws
