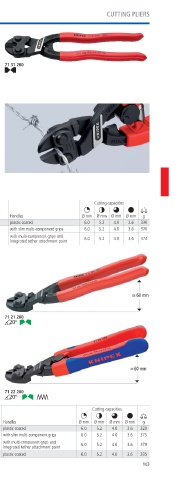

Page 184 - KNIPEX katalógus

CUTTING PLIERS

The recess in the blade allows easier cutting of thicker wires,
e.g. for anchor bolts in false ceilings
With gripping surface below the joint for gripping and
pulling wires with a diameter as from 1 mm
71 32 200 / 71 32 200 T* 71 31 200
opening spring and locking device are integrated in the handles also
for comfortable work and protected transport
71 32 200 T*
Pliers with tether attachment point for mounting a fall protection

71 31 200 / 71 32 200 / 71 32 200 T 71 31 200 / 71 32 200 / 71 32 200 T
The recess in the blade allows easier cutting With gripping surface below the joint for
of thicker wires, e g for anchor bolts in false gripping and pulling wires with a diameter
ceilings as from 1 mm
Cutting capacities
EAN
Article No 003773 mm Style Pliers Handles Ø mm Ø mm Ø mm Ø mm g
71 31 200 0 2327 200 3 black atramentized plastic coated 6 0 5 2 0 3 6 330
71 32 200 066880 200 with slim multi component grips 6 0 5 2 0 3 6 370
3 black atramentized with multi component grips and
71 32 200 T 080060 200 6 0 5 2 0 3 6 37
integrated tether attachment point

20° angled head with single-sided joint bar and diagonal
cutting edge for flush cutting; with space for gripping

71 22 200 / 71 22 200 T*
opening spring and locking device are integrated in the handles
also for comfortable work and protected transport
71 22 200 T*
Pliers with tether attachment point for mounting a fall protection
71 41 200
the recess in the blade allows easier cutting of thicker wires,
e g for anchor bolts in false ceilings 71 21 200
20°

71 22 200
20°
Cutting capacities
EAN
Article No 003773 mm Pliers Handles Ø mm Ø mm Ø mm Ø mm g
71 21 200 066866 200 20° black atramentized plastic coated 6 0 5 2 0 3 6 320
71 22 200 066873 200 with slim multi component grips 6 0 5 2 0 3 6 375
20° black atramentized with multi component grips and
71 22 200 T 080053 200 6 0 5 2 0 3 6 379
integrated tether attachment point
71 41 200 066897 200 20° black atramentized plastic coated 6 0 5 2 0 3 6 335

* Other tools with tethering can be found from page 25 ff 103
