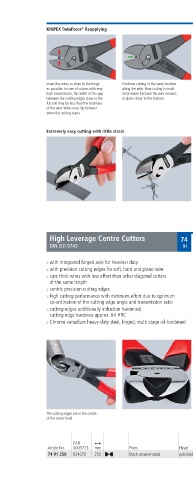

Page 179 - KNIPEX katalógus

CUTTING PLIERS

®
KNIPEX TwinForce Reapplying

Insert the wires as close to the hinge Continue cutting in the same location First make a notch in the wire using You can repeat this process if necessary
as possible In case of cutters with very along the wire Now cutting is much the KNIPEX TwinForce until the
®
high transmission, the width of the gap more easier because the wire remains required hand force increases considerably
between the cutting edges close to the in place closer to the fulcrum Now open the pliers and slide
fulcrum may be less than the thickness the wire backwards towards the joint
of the wire Wires may slip forward
when the cutting starts

Extremely easy cutting with little strain

High Leverage Centre Cutters 74
DIN ISO 5743 91

> with integrated forged axle for heaviest duty
> with precision cutting edges for soft, hard and piano wire
> cuts thick wires with less effort than other diagonal cutters
of the same length 74 91 250
> centric precision cutting edges
> high cutting performance with minimum effort due to optimum
co ordination of the cutting edge angle and transmission ratio
> cutting edges additionally induction hardened,
cutting edge hardness approx 6 HRC
> Chrome vanadium heavy duty steel, forged, multi stage oil hardened

The cutting edges are in the centre
of the cutter head

Cutting capacities
EAN
Article No 003773 mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm g
74 91 250 03 070 250 black atramentized polished plastic coated 5 0 5 0 3 8 3 5 395
