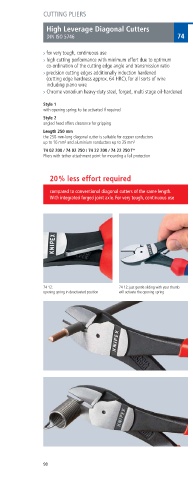

Page 173 - KNIPEX katalógus

CUTTING PLIERS

High Leverage Diagonal Cutters
DIN ISO 5746 74

> for very tough, continuous use
> high cutting performance with minimum effort due to optimum 74 01 200
co ordination of the cutting edge angle and transmission ratio
> precision cutting edges additionally induction hardened
(cutting edge hardness approx 6 HRC), for all sorts of wire
including piano wire
> Chrome vanadium heavy duty steel, forged, multi stage oil hardened
Style 1 74 02 250
with opening spring; to be activated if required
Style 2
angled head offers clearance for gripping
Length 250 mm
the 250 mm long diagonal cutter is suitable for copper conductors
up to 16 mm² and aluminium conductors up to 35 mm²
74 02 200 / 74 02 250 / 74 22 200 / 74 22 250 T* 74 02 250 T
Pliers with tether attachment point for mounting a fall protection

20 % less effort required

EQORCTGF VQ EQPXGPVKQPCN FKCIQPCN EWVVGTU QH VJG UCOG NGPIVJ
9KVJ KPVGITCVGF HQTIGF LQKPV CZNG (QT XGT[ VQWIJ EQPVKPWQWU WUG 74 05 200

74 06 200

7 12: 7 12: just gentle sliding with your thumb
opening spring in deactivated position will activate the opening spring 74 12 180

74 21 200
12°

74 07 200

98
