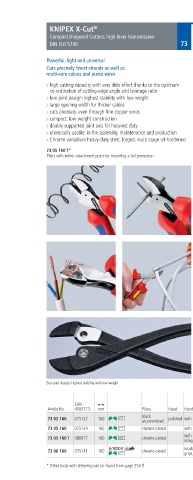

Page 171 - KNIPEX katalógus

CUTTING PLIERS

KNIPEX X-Cut ®
%QORCEV &KCIQPCN %WVVGTU JKIJ NGXGT VTCPUOKUUKQP
DIN ISO 5749 73

2QYGTHWN NKIJV CPF WPKXGTUCN
Cuts precisely finest strands as well as
multi-core cables and piano wires 73 02 160

> high cutting capacity with very little effort thanks to the optimum
co ordination of cutting edge angle and leverage ratio
> box joint design: highest stability with low weight
> large opening width for thicker cables
> cuts precisely, even through fine copper wires
> compact, low weight construction
> doubly supported joint axis for heaviest duty 73 05 160
> universally usable, in the assembly, maintenance and production
> Chrome vanadium heavy duty steel, forged, multi stage oil hardened
73 05 160 T*
Pliers with tether attachment point for mounting a fall protection

73 05 160 T

73 06 160

X-Cut ®

Product video

40 % less effort required

compared to diagonal cutters of the same length.
With double mounted hinged joint

$ox joint design: highest stability with low weight
Cutting capacities
EAN
Article No 003773 mm Pliers Head Handles Ø mm Ø mm Ø mm Ø mm Ø mm g
black
73 02 160 075127 160 atramentized polished with multi component grips 8 3 8 2 7 2 2 12 0 175
73 05 160 07513 160 chrome plated with multi component grips 8 3 8 2 7 2 2 12 0 175
with multi component grips and
73 05 160 T 080077 160 chrome plated integrated tether attachment point 8 3 8 2 7 2 2 12 0 179
73 06 160 0751 1 160 chrome plated insulated with multi component 8 3 8 2 7 2 2 12 0 175
grips, VDE tested

* Other tools with tethering can be found from page 25 ff 97
