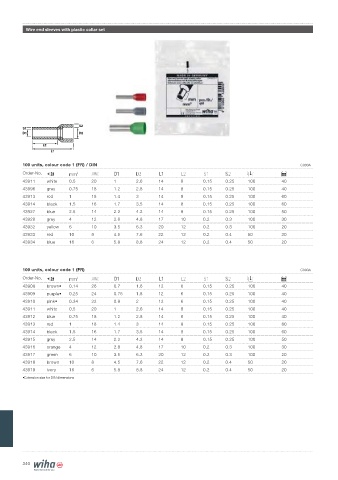

Page 340 - Wiha catalogue 2022

Wire end sleeves with plastic collar set

S2
S1
D1 D2
L2
L1
100 units, colour code 1 (FR) / DIN C000A
Order-No.
43911 white 0.5 20 1 2.6 14 8 0.15 0.25 100 40
43996 grey 0.75 18 1.2 2.8 14 8 0.15 0.25 100 40
43913 red 1 18 1.4 3 14 8 0.15 0.25 100 60
43914 black 1.5 16 1.7 3.5 14 8 0.15 0.25 100 60
43927 blue 2.5 14 2.2 4.2 14 8 0.15 0.25 100 50
43928 grey 4 12 2.8 4.8 17 10 0.2 0.3 100 30
43932 yellow 6 10 3.5 6.3 20 12 0.2 0.3 100 20
43933 red 10 8 4.5 7.6 22 12 0.2 0.4 50 20
43934 blue 16 6 5.8 8.8 24 12 0.2 0.4 50 20

100 units, colour code 1 (FR) C000A
Order-No.
43908 brown• 0.14 26 0.7 1.6 12 6 0.15 0.25 100 40
43909 purple• 0.25 24 0.75 1.8 12 6 0.15 0.25 100 40
43910 pink• 0.34 22 0.8 2 12 6 0.15 0.25 100 40
43911 white 0.5 20 1 2.6 14 8 0.15 0.25 100 40
43912 blue 0.75 18 1.2 2.8 14 8 0.15 0.25 100 40
43913 red 1 18 1.4 3 14 8 0.15 0.25 100 60
43914 black 1.5 16 1.7 3.5 14 8 0.15 0.25 100 60
43915 grey 2.5 14 2.2 4.2 14 8 0.15 0.25 100 50
43916 orange 4 12 2.8 4.8 17 10 0.2 0.3 100 30
43917 green 6 10 3.5 6.3 20 12 0.2 0.3 100 20
43918 brown 10 8 4.5 7.6 22 12 0.2 0.4 50 20
43919 ivory 16 6 5.8 8.8 24 12 0.2 0.4 50 20
•Extension size for DIN dimensions

340
