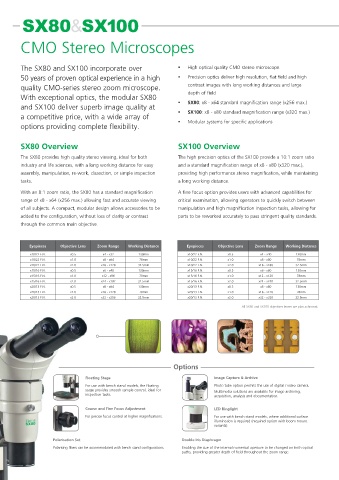

CMO Stereo Microscopes

The SX80 and SX100 incorporate over High optical quality CMO stereo microscope
50 years of proven optical experience in a high Precision optics deliver high resolution, flat field and high
quality CMO-series stereo zoom microscope. contrast images with long working distances and large
depth of field
With exceptional optics, the modular SX80
SX80: x8 - x64 standard magnification range (x256 max.)
and SX100 deliver superb image quality at
SX100: x8 - x80 standard magnification range (x320 max.)
a competitive price, with a wide array of
Modular systems for specific applications
options providing complete flexibility.

SX80 Overview SX100 Overview

The SX80 provides high quality stereo viewing, ideal for both The high precision optics of the SX100 provide a 10:1 zoom ratio
industry and life sciences, with a long working distance for easy and a standard magnification range of x8 - x80 (x320 max.),
assembly, manipulation, re-work, dissection, or simple inspection providing high performance stereo magnification, while maintaining
tasks. a long working distance.

With an 8:1 zoom ratio, the SX80 has a standard magnification A fine focus option provides users with advanced capabilities for
range of x8 - x64 (x256 max.) allowing fast and accurate viewing critical examination, allowing operators to quickly switch between
of all subjects. A compact, modular design allows accessories to be manipulation and high magnification inspection tasks, allowing for
added to the configuration, without loss of clarity or contrast parts to be reworked accurately to pass stringent quality standards.
through the common main objective.

Eyepieces Objective Lens Zoom Range Working Distance Eyepieces Objective Lens Zoom Range Working Distance
x10/22 F.N. x0.5 x4 - x32 130mm x10/22 F.N. x0.5 x4 - x40 130mm
x10/22 F.N. x1.0 x8 - x64 78mm x10/22 F.N. x1.0 x8 - x80 78mm
x10/22 F.N. x2.0 x16 - x128 32.5mm x10/22 F.N. x2.0 x16 - x160 32.5mm
x15/16 F.N. x0.5 x6 - x48 130mm x15/16 F.N. x0.5 x6 - x60 130mm
x15/16 F.N. x1.0 x12 - x96 78mm x15/16 F.N. x1.0 x12 - x120 78mm
x15/16 F.N. x2.0 x24 - x192 32.5mm x15/16 F.N. x2.0 x24 - x240 32.5mm
x20/13 F.N. x0.5 x8 - x64 130mm x20/13 F.N. x0.5 x8 - x80 130mm
x20/13 F.N. x1.0 x16 - x128 78mm x20/13 F.N. x1.0 x16 - x120 78mm
x20/13 F.N. x2.0 x32 - x256 32.5mm x20/13 F.N. x2.0 x32 - x320 32.5mm
All SX80 and SX100 objectives lenses are plan achromat.

Options
Floating Stage Image Capture & Archive
For use with bench stand models, the floating Photo tube option permits the use of digital / video camera.
stage provides smooth sample control, ideal for Multimedia solutions are available for image archiving,
inspection tasks.
acquisition, analysis and documentation.
Coarse and Fine Focus Adjustment LED Ringlight
For precise focus control at higher magnifications. For use with bench stand models, where additional surface
illumination is required (required option with boom mount
variants).

Polarisation Set Double Iris Diaphragm
Polarising filters can be accommodated with bench stand configurations. Enabling the size of the internal numerical aperture to be changed on both optical
paths, providing greater depth of field throughout the zoom range.
