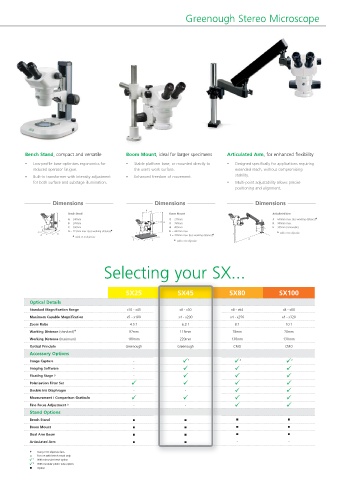

Page 5 - VISION ENGINEERING SX széria

Greenough Stereo Microscope

Bench Stand, compact and versatile Boom Mount, ideal for larger specimens Articulated Arm, for enhanced flexibility
Low-profile base optimises ergonomics for Stable platform base, or mounted directly to Designed specifically for applications requiring
reduced operator fatigue. the user’s work surface. extended reach, without compromising
Built-in transformer with intensity adjustment Enhanced freedom of movement. stability.
for both surface and substage illumination. Multi-point adjustability allows precise
positioning and alignment.

Dimensions Dimensions Dimensions
H
Bench Stand Boom Mount Articulated Arm
A = 240mm E = 275mm J = 600mm max. (less working distance) ♦
C
B = 285mm G F = 395mm K = 950mm max.
D C = 300mm G = 485mm L L = 305mm (removable)
D = 215mm max. (less working distance) ♦ H = 442mm max. ♦ with x1.0 objective
B I I = 285mm max. (less working distance) ♦ J
A
♦ with x1.0 objective
E ♦ with x1.0 objective K
F
Selecting your SX...

SX25 SX45 SX80 SX100
Optical Details
Standard Magnification Range x10 - x45 x8 - x50 x8 - x64 x8 - x80
Maximum Capable Magnification x5 - x180 x4 - x200 x4 - x256 x4 - x320
Zoom Ratio 4.5:1 6.3:1 8:1 10:1
♦
Working Distance (standard) 97mm 115mm 78mm 78mm
Working Distance (maximum) 180mm 220mm 130mm 130mm
Optical Principle Greenough Greenough CMO CMO
Accessory Options
Image Capture - ¹ ² ²
Imaging Software -

Floating Stage ◊ -
Polarisation Filter Set
Double Iris Diaphragm - -
Measurement / Comparison Graticule
Fine Focus Adjustment ◊ - -
Stand Options
Bench Stand ■ ■ ■ ■
Boom Mount ■ ■ ■ ■
Dual Arm Boom ■ ■ ■ ■
Articulated Arm ■ ■ - -

♦ Using x1.0 objective lens.
◊ For use with bench stand only.
¹ With trinocular head option.
² With modular photo tube option.
■ Option
