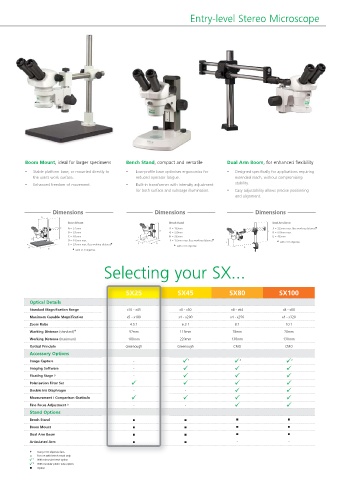

Page 3 - VISION ENGINEERING SX széria

Entry-level Stereo Microscope

Boom Mount, ideal for larger specimens Bench Stand, compact and versatile Dual Arm Boom, for enhanced flexibility
Stable platform base, or mounted directly to Low-profile base optimises ergonomics for Designed specifically for applications requiring
the user’s work surface. reduced operator fatigue. extended reach, without compromising
Enhanced freedom of movement. Built-in transformer with intensity adjustment stability.
for both surface and substage illumination. Easy adjustability allows precise positioning
and alignment.

Dimensions Dimensions Dimensions
D
Boom Mount Bench Stand Dual Arm Boom
C A = 275mm F = 183mm J = 325mm max. (less working distance) ♦
H L
B = 395mm G = 250mm K = 670mm max.
C = 485mm H = 285mm L = 405mm
E I I = 155mm max. (less working distance) ♦
D = 442mm max. ♦ with x1.0 objective
E = 295mm max. (less working distance) ♦ F G J
♦ with x1.0 objective
A K
B
♦ with x1.0 objective
Selecting your SX...

SX25 SX45 SX80 SX100
Optical Details
Standard Magnification Range x10 - x45 x8 - x50 x8 - x64 x8 - x80
Maximum Capable Magnification x5 - x180 x4 - x200 x4 - x256 x4 - x320
Zoom Ratio 4.5:1 6.3:1 8:1 10:1
♦
Working Distance (standard) 97mm 115mm 78mm 78mm
Working Distance (maximum) 180mm 220mm 130mm 130mm
Optical Principle Greenough Greenough CMO CMO
Accessory Options
Image Capture - ¹ ² ²
Imaging Software -

Floating Stage ◊ -
Polarisation Filter Set
Double Iris Diaphragm - -
Measurement / Comparison Graticule
Fine Focus Adjustment ◊ - -
Stand Options
Bench Stand ■ ■ ■ ■
Boom Mount ■ ■ ■ ■
Dual Arm Boom ■ ■ ■ ■
Articulated Arm ■ ■ - -

♦ Using x1.0 objective lens.
◊ For use with bench stand only.
¹ With trinocular head option.
² With modular photo tube option.
■ Option
