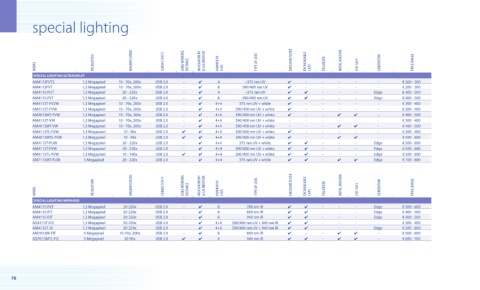

Page 76 - DINO-LITE általános katalógus
P. 76
special lighting
MODE L RESOLUTION MAGNIFICATION CONNECTIVITY LONG WORKING DISTANCE MEASUREMENT & CALIBRATION NUMBER OF LEDS TYPE OF LEDS EMISSION FILTER EXCHANGABLE CAPS POLARIZER METAL HOUSING ESD SAFE GENERATION PRICE RANGE
SPECIAL LIGHTING ULTRAVIOLET
AM4113FVT2 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 4 ~375 nm UV ✔ - - - - - € 200 - 300
AM4113FVT 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 8 390/400 nm UV ✔ - - - - - € 200 - 300
AM4115-FUT 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 4 ~375 nm UV ✔ ✔ - - - Edge € 400 - 500
AM4115-FVT 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 8 390/400 nm UV ✔ ✔ - - - Edge € 400 - 500
AM4113T-FV2W 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 4+4 375 nm UV + white ✔ - - - - - € 300 - 400
AM4113T-FVW 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 4+4 390/400 nm UV + white ✔ - - - - - € 300 - 400
AM4013MT-FVW 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 4+4 390/400 nm UV + white ✔ - - ✔ ✔ - € 400 - 500
AM4113T-VW 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 4+4 390/400 nm UV + white - - - - - - € 300 - 400
AM4013MT-VW 1,3 Megapixel 10 - 70x, 200x USB 2.0 - ✔ 4+4 390/400 nm UV + white - - - ✔ ✔ - € 400 - 500
AM4113TL-FVW 1,3 Megapixel 10 - 90x USB 2.0 ✔ ✔ 4+4 390/400 nm UV + white ✔ - - - - - € 300 - 400
AM4013MTL-FVW 1,3 Megapixel 10 - 90x USB 2.0 ✔ ✔ 4+4 390/400 nm UV + white ✔ - - ✔ ✔ - € 500 - 600
AM4115T-FUW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 4+4 375 nm UV + white ✔ ✔ - - - Edge € 500 - 600
AM4115T-FVW 1,3 Megapixel 20 - 220x USB 2.0 - ✔ 4+4 390/400 nm UV + white ✔ ✔ - - - Edge € 500 - 600
AM4115TL-FVW 1,3 Megapixel 10 - 140x USB 2.0 ✔ ✔ 4+4 390/400 nm UV + white ✔ ✔ - - - Edge € 500 - 600
AM7115MT-FUW 5 Megapixel 20 - 220x USB 2.0 - ✔ 4+4 375 nm UV + white ✔ ✔ - ✔ ✔ Edge € 700 - 800
MODE L RESOLUTION MAGNIFICATION CONNECTIVITY LONG WORKING DISTANCE MEASUREMENT & CALIBRATION NUMBER OF LEDS TYPE OF LEDS EMISSION FILTER EXCHANGABLE CAPS POLARIZER METAL HOUSING ESD SAFE GENERATION PRICE RANGE
SPECIAL LIGHTING INFRARED
AM4115-FKT 1,3 Megapixel 20-220x USB 2.0 - ✔ 8 780 nm IR ✔ ✔ - - - Edge € 500 - 600
AM4115-FIT 1,3 Megapixel 20-220x USB 2.0 - ✔ 8 850 nm IR ✔ ✔ - - - Edge € 400 - 500
AM4115-FJT 1,3 Megapixel 20-220x USB 2.0 - ✔ 8 940 nm IR ✔ ✔ - - - Edge € 400 - 500
AD4113T-I2V 1,3 Megapixel 20-200x USB 2.0 - ✔ 4+4 390/400 nm UV + 940 nm IR ✔ ✔ - - - - € 300 - 400
AM4115T-JV 1,3 Megapixel 20-220x USB 2.0 - ✔ 4+4 390/400 nm UV + 940 nm IR ✔ ✔ - - - Edge € 500 - 600
AM7013M-FIT 5 Megapixel 10-70x, 200x USB 2.0 - ✔ 8 850 nm IR ✔ - - ✔ ✔ - € 500 - 600
AD7013MTL-FI2 5 Megapixel 20-90x USB 2.0 ✔ ✔ 8 940 nm IR ✔ ✔ - ✔ ✔ - € 600 - 700
76
