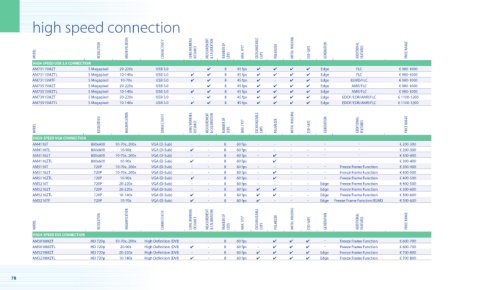

Page 78 - DINO-LITE általános katalógus
P. 78

high speed connection





             MODEL                  RESOLUTION  MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT   & CALIBRATION  NUMBER OF   LEDS  MAX. FPS*  EXCHANGEABLE  CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE
             HIGH SPEED USB 3.0 CONNECTION
            AM73115MZT          5 Megapixel  20-220x    USB 3.0     -     ✔     8   45 fps  ✔    ✔     ✔     ✔    Edge        FLC            € 900-1000
            AM73115MZTL         5 Megapixel  10-140x    USB 3.0     ✔     ✔     8   45 fps  ✔    ✔     ✔     ✔    Edge        FLC            € 900-1000
            AM73115MTF          5 Megapixel  10-70x     USB 3.0     ✔     ✔     8   45 fps  ✔    -     ✔     ✔    Edge      ELWD/FLC         € 900-1000
            AM73515MZT          5 Megapixel  20-220x    USB 3.0     -     ✔     8   45 fps  ✔    ✔     ✔     ✔    Edge      AMR/FLC          € 900-1000
            AM73515MZTL         5 Megapixel  10-140x    USB 3.0     ✔     ✔     8   45 fps  ✔    ✔     ✔     ✔    Edge      AMR/FLC          € 900-1000
            AM73915MZT          5 Megapixel  20-220x    USB 3.0     -     ✔     8   45 fps  ✔    ✔     ✔     ✔    Edge   EDOF/EDR/AMR/FLC    € 1100-1200
            AM73915MZTL         5 Megapixel  10-140x    USB 3.0     ✔     ✔     8   45 fps  ✔    ✔     ✔     ✔    Edge   EDOF/EDR/AMR/FLC    € 1100-1200



             MODEL                  RESOLUTION  MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT   & CALIBRATION  NUMBER OF   LEDS  MAX. FPS*  EXCHANGEABLE  CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE

             HIGH SPEED VGA CONNECTION
            AM4116T              800x600  10-70x, 200x  VGA (D-Sub)  -    -     8   60 fps  -    -     -     -     -           -             € 200-300
            AM4116TL             800x600   10-90z     VGA (D-Sub)   ✔     -     8   60 fps  -    -     -     -     -           -             € 200-300
            AM4116ZT             800x600  10-70x, 200x  VGA (D-Sub)  -    -     8   60 fps  -    ✔     -     -     -           -             € 300-400
            AM4116ZTL            800x600   10-90x     VGA (D-Sub)   ✔     -     8   60 fps  -    ✔     -     -                 -             € 300-400
            AM5116T               720P   10-70x, 200x  VGA (D-Sub)  -     -     8   60 fps  -    -     -     -     -    Freeze Frame Function  € 300-400
            AM5116ZT              720P   10-70x, 200x  VGA (D-Sub)  -     -     8   60 fps  -    ✔     -     -     -    Freeze Frame Function  € 400-500
            AM5116ZTL             720P     10-90x     VGA (D-Sub)    ✔    -     8   60 fps  -    ✔     -     -     -    Freeze Frame Function  € 400-500
            AM5216T               720P     20-220x    VGA (D-Sub)   -     -     8   60 fps  -    -     -     -   Edge   Freeze Frame Function  € 400-500
            AM5216ZT              720P     20-220x    VGA (D-Sub)   -     -     8   60 fps  ✔    ✔     -     -   Edge   Freeze Frame Function  € 500-600
            AM5216ZTL             720P     10-140x    VGA (D-Sub)   ✔     -     8   60 fps  ✔    ✔     -     -   Edge   Freeze Frame Function  € 500-600
            AM5216TF              720P     10-70x     VGA (D-Sub)   ✔     -     8   60 fps  ✔    -     -     -   Edge  Freeze Frame Function/ELWD  € 500-600


             MODEL                  RESOLUTION  MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT   & CALIBRATION  NUMBER OF   LEDS  MAX. FPS*  EXCHANGEABLE  CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE

             HIGH SPEED DVI CONNECTION
            AM5018MZT            HD 720p  10-70x, 200x  High Defi nition (DVI)  -  -  8  60 fps  -  ✔   ✔    ✔      -    Freeze Frame Function  € 600-700
            AM5018MZTL           HD 720p   20-90x   High Defi nition (DVI)  ✔  -  8  60 fps  -    ✔     ✔    ✔      -    Freeze Frame Function  € 600-700
            AM5218MZT            HD 720p   20-220x  High Defi nition (DVI)  -  -  8  60 fps  ✔    ✔     ✔    ✔    Edge   Freeze Frame Function  € 700-800
            AM5218MZTL           HD 720p   10-140x  High Defi nition (DVI)  ✔  -  8  60 fps  ✔    ✔     ✔    ✔    Edge   Freeze Frame Function  € 700-800
