Page 77 - DINO-LITE általános katalógus
P. 77

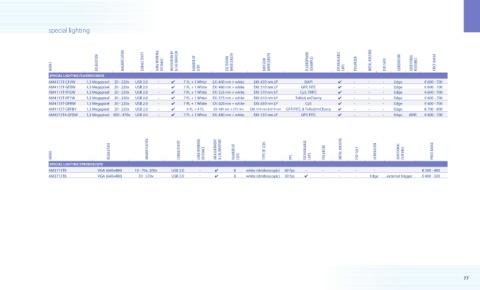

special lighting






                   MODE L          RESOLUTION  MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT  & CALIBRATION  NUMBER OF   LEDS  EXCITATION   WAVELENGTH  EMISSION   WAVELENGTH  FLUOROPHORE    EXAMPLE   EXCHANGABLE   CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE
                  SPECIAL LIGHTING FLUORESCENCE
                  AM4115T-CFVW  1,3 Megapixel  20 - 220x  USB 2.0  -  ✔  7 FL + 1 White  EX: 400 nm + white  EM: 430 nm LP  DAPI  ✔  -  -  -  Edge     € 600 - 700
                  AM4115T-GFBW  1,3 Megapixel  20 - 220x  USB 2.0  -  ✔  7 FL + 1 White  EX: 480 nm + white  EM: 510 nm LP  GFP, FITC  ✔  -  -  -  Edge     € 600 - 700
                  AM4115T-YFGW  1,3 Megapixel  20 - 220x  USB 2.0  -  ✔  7 FL + 1 White  EX: 525 nm + white  EM: 570 nm LP  Cy3, TRITC  ✔  -  -  -  Edge     € 600 - 700
                  AM4115T-RFYW  1,3 Megapixel  20 - 220x  USB 2.0  -  ✔  7 FL + 1 White  EX: 575 nm + white  EM: 610 nm LP  TxRed, mCherry  ✔  -  -  -  Edge     € 600 - 700
                  AM4115T-DFRW  1,3 Megapixel  20 - 220x  USB 2.0  -  ✔  7 FL + 1 White  EX: 620 nm + white  EM: 650 nm LP   Cy5  ✔  -  -  -  Edge     € 600 - 700
                  AM4115T-GRFBY  1,3 Megapixel  20 - 220x  USB 2.0  -  ✔  4 FL + 4 FL  EX: 480 nm + 575 nm  EM: 510 nm & 610 nm   GFP/FITC & TxRed/mCherry  ✔  -  -  -  Edge     € 700 - 800
                  AM4515T4-GFBW  1,3 Megapixel 400 - 470x  USB 2.0  -  ✔  7 FL + 1 White  EX: 480 nm + white  EM: 510 nm LP  GFP, FITC  ✔  -  -  -  Edge  AMR  € 600 - 700






                   MODE L              RESOLUTION    MAGNIFICATION  CONNECTIVITY  LONG WORKING   DISTANCE  MEASUREMENT  & CALIBRATION  NUMBER OF   LEDS  TYPE OF LEDS  FPS  EXCHANGABLE   CAPS  POLARIZER  METAL HOUSING  ESD SAFE  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE

                  SPECIAL LIGHTING STROBOSCOPE
                  AM3713TB         VGA (640x480)  10 - 70x, 200x  USB 2.0  -  ✔    8   white (stroboscopic)  60 fps  -  -  -  -     -        -       € 300 - 400
                  AM3715TB         VGA (640x480)  20 - 220x  USB 2.0   -    ✔      8   white (stroboscopic)  30 fps  ✔  -  -  -    Edge  external trigger  € 400 - 500
