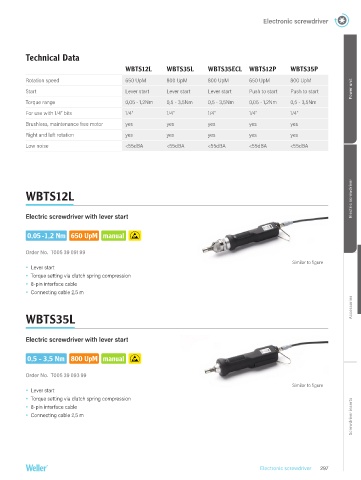

P. 297
Electronic screwdriver
Technical Data
WBTS12L WBTS35L WBTS35ECL WBTS12P WBTS35P
Rotation speed 650 UpM 800 UpM 800 UpM 650 UpM 800 UpM
Start Lever start Lever start Lever start Push to start Push to start Power unit
Torque range 0,05 - 1,2Nm 0,5 - 3,5Nm 0,5 - 3,5Nm 0,05 - 1,2Nm 0,5 - 3,5Nm
For use with 1/4“ bits 1/4“ 1/4“ 1/4“ 1/4“ 1/4“
Brushless, maintenance free motor yes yes yes yes yes
Right and left rotation yes yes yes yes yes
Low noise <55dBA <55dBA <55dBA <55dBA <55dBA
Electric screwdriver Electric screwdriver
WBTS12L
Electric screwdriver with lever start
0,05 -1,2 Nm 650 UpM manual
Order No. T005 39 091 99
Similar to figure
Lever start
Torque setting via clutch spring compression
8-pin interface cable
Connecting cable 2,5 m
Accessories
WBTS35L
Electric screwdriver with lever start
0,5 - 3,5 Nm 800 UpM manual
Order No. T005 39 093 99
Similar to figure
Lever start
Torque setting via clutch spring compression
Screwdriver inserts
8-pin interface cable
Connecting cable 2,5 m
Electronic screwdriver 297
