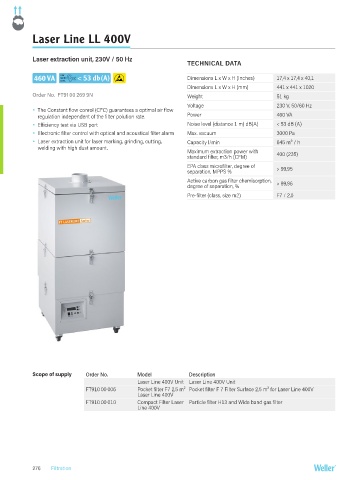

P. 276
Laser Line LL 400V
Laser extraction unit, 230V / 50 Hz
TECHNICAL DATA
460 VA LOW < 53 db (A) Dimensions L x W x H (Inches) 17,4 x 17,4 x 40,1
SOUND
LEVEL
Dimensions L x W x H (mm) 441 x 441 x 1020
Order No. FT91 00 269 9N Weight 51 kg
Voltage 230 V, 50/60 Hz
The Constant flow conrol (CFC) guarantees a optimal air flow
regulation independent of the filter polution rate. Power 460 VA
Efficiency test via USB port Noise level (distance 1 m) dB(A) < 53 dB (A)
Electronic filter control with optical and acoustical filter alarm Max. vacuum 3000 Pa
Laser extraction unit for laser marking, grinding, cutting, Capacity l/min 645 m³ / h
welding with high dust amount.
Maximum extraction power with 400 (235)
standard filter, m3/h (CFM)
EPA class microfilter, degree of > 99,95
separation, MPPS %
Active carbon gas filter chemisorption, > 99,96
degree of separation, %
Pre-filter (class, size m2) F7 / 2,0
Scope of supply Order No. Model Description
Laser Line 400V Unit Laser Line 400V Unit
FT910 00 006 Pocket filter F7 2,5 m² Pocket filter F 7 Filter Surface 2,5 m² for Laser Line 400V
Laser Line 400V
FT910 00 010 Compact Filter Laser Particle filter H13 and Wide band gas filter
Line 400V
276 Filtration
