P. 275

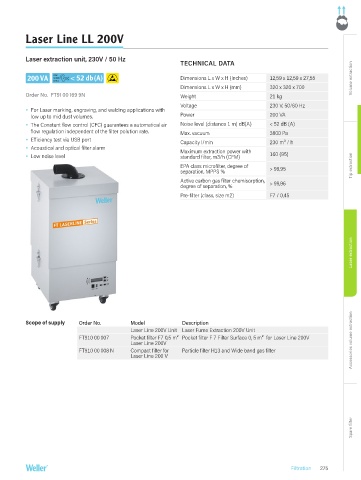

Laser Line LL 200V
Laser extraction unit, 230V / 50 Hz
TECHNICAL DATA
200 VA LOW < 52 db (A) Dimensions L x W x H (Inches) 12,59 x 12,59 x 27,55 Volume extraction
SOUND
LEVEL
Dimensions L x W x H (mm) 320 x 320 x 700
Order No. FT91 00 169 9N Weight 21 kg
Voltage 230 V, 50/60 Hz
For Laser marking, engraving, and welding applications with
low up to mid dust volumes. Power 200 VA
The Constant flow control (CFC) guarantees a automatical air Noise level (distance 1 m) dB(A) < 52 dB (A)
flow regulation independent of the filter polution rate. Max. vacuum 3800 Pa
Efficiency test via USB port Capacity l/min 230 m³ / h
Acoustical and optical filter alarm Maximum extraction power with
Low noise level standard filter, m3/h (CFM) 160 (95)
EPA class microfilter, degree of > 99,95 Tip extraction
separation, MPPS %
Active carbon gas filter chemisorption, > 99,96
degree of separation, %
Pre-filter (class, size m2) F7 / 0,45
Laser extraction
Scope of supply Order No. Model Description
Laser Line 200V Unit Laser Fume Extraction 200V Unit
FT910 00 007 Pocket filter F7 0,5 m² Pocket filter F 7 Filter Surface 0, 5 m² for Laser Line 200V
Laser Line 200V Accessories volume extraction
FT910 00 008 N Compact filter for Particle filter H13 and Wide band gas filter
Laser Line 200 V
Spare filter
Filtration 275
