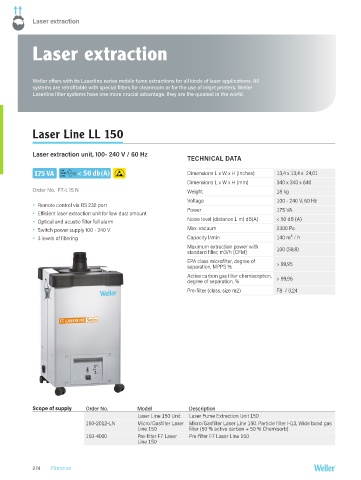

Page 274 - weller
P. 274
Filtration
Laser extraction
Laser extraction
Weller offers with its Laserline series mobile fume extractions for all kinds of laser applications. All
systems are retrofitable with special filters for cleanroom or for the use of inkjet printers. Weller
Laserline filter systems have one more crucial advantage. they are the quietest in the world.
Laser Line LL 150
Laser extraction unit, 100- 240 V / 60 Hz
TECHNICAL DATA
175 VA LOW < 50 db (A) Dimensions L x W x H (Inches) 13,4 x 13,4 x 24,01
SOUND
LEVEL
Dimensions L x W x H (mm) 340 x 340 x 640
Order No. FT-L 15 N Weight 18 kg
Voltage 100 - 240 V, 60 Hz
Remote control via RS 232 port
Efficient laser extraction unit for low dust amount Power 175 VA
Optical and acustic filter full alarm Noise level (distance 1 m) dB(A) < 50 dB (A)
Switch power supply 100 - 240 V Max. vacuum 2300 Pa
3 levels of filtering Capacity l/min 140 m³ / h
Maximum extraction power with
standard filter, m3/h (CFM) 100 (58,8)
EPA class microfilter, degree of
separation, MPPS % > 99,95
Active carbon gas filter chemisorption, > 99,96
degree of separation, %
Pre-filter (class, size m2) F8 / 0,24
Scope of supply Order No. Model Description
Laser Line 150 Unit Laser Fume Extraction Unit 150
150-2012-LN Micro/Gasfilter Laser Micro/Gasfilter Laser Line 150. Particle filter H13, Wide band gas
Line 150 filter (50 % active carbon + 50 % Chemisorb)
150-4000 Pre-filter F7 Laser Pre-filter F7 Laser Line 150
Line 150
274 Filtration
