Tip extraction

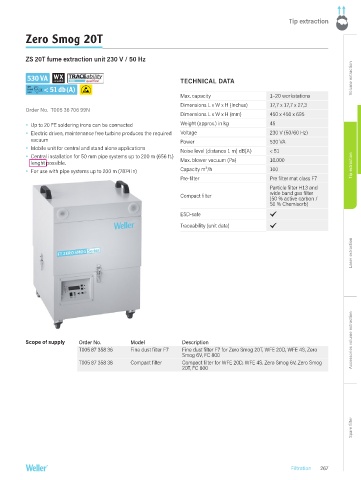

Zero Smog 20T
ZS 20T fume extraction unit 230 V / 50 Hz
530 VA TECHNICAL DATA Volume extraction
LOW
SOUND < 51 db (A)
LEVEL
Max. capacity 1–20 workstations
Dimensions L x W x H (Inches) 17,7 x 17,7 x 27,3
Order No. T005 36 706 99N
Dimensions L x W x H (mm) 450 x 450 x 695
Up to 20 FE soldering irons can be connected Weight (approx.) in kg 45
Electric driven, maintenance free turbine produces the required Voltage 230 V (50/60 Hz)
vacuum Power 530 VA
Mobile unit for central and stand alone applications Noise level (distance 1 m) dB(A) < 51
Central installation for 50 mm pipe systems up to 200 m (656 ft.)
lenght possible. Max. blower vacuum (Pa) 10.000 Tip extraction
For use with pipe systems up to 200 m (7874 in) Capacity m³/h 100
Pre-filter Pre filter mat class F7
Particle filter H13 and
Compact filter wide band gas filter
(50 % active carbon /
50 % Chemisorb)
ESD-safe .
Traceability (unit data) .
Laser extraction
Accessories volume extraction
Scope of supply Order No. Model Description
T005 87 358 36 Fine dust filter F7 Fine dust filter F7 for Zero Smog 20T, WFE 20D, WFE 4S, Zero
Smog 6V, FC 800
T005 87 358 38 Compact filter Compact filter for WFE 20D, WFE 4S, Zero Smog 6V, Zero Smog
20T, FC 800
Spare filter
