Tip extraction

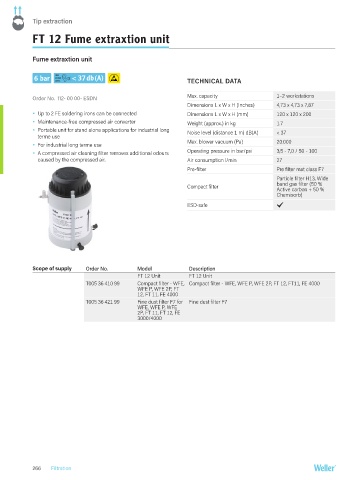

            FT 12 Fume extraxtion unit



            Fume extraxtion unit


            6 bar  LOW   < 37 db (A)                           TECHNICAL DATA
                   SOUND
                   LEVEL

            Order No.  112- 00 00- ESDN                        Max. capacity                1–2 workstations
                                                               Dimensions L x W x H (Inches)  4,73 x 4,73 x 7,87
               Ÿ Up to 2 FE soldering irons can be connected   Dimensions L x W x H (mm)    120 x 120 x 200
               Ÿ Maintenance-free compressed air converter     Weight (approx.) in kg       1.7
               Ÿ Portable unit for stand alone applications for industrial long   Noise level (distance 1 m) dB(A)  < 37
             terme use
               Ÿ For industrial long terme use                 Max. blower vacuum (Pa)      20.000
               Ÿ A compressed air cleaning filter removes additional odours   Operating pressure in bar/psi  3,5 - 7,0 / 50 - 100
             caused by the compressed air.                     Air consumption l/min        27
                                                               Pre-filter                   Pre filter mat class F7
                                                                                            Particle filter H13, Wide
                                                               Compact filter               band gas filter (50 %
                                                                                            Active carbon + 50 %
                                                                                            Chemisorb)
                                                               ESD-safe                     .










            Scope of supply  Order No.        Model            Description
                                              FT 12 Unit       FT 12 Unit
                             T005 36 410 99   Compact filter - WFE,  Compact filter - WFE, WFE P, WFE 2P, FT 12, FT11, FE 4000
                                              WFE P, WFE 2P, FT
                                              12, FT 11, FE 4000
                             T005 36 421 99   Fine dust filter F7 for  Fine dust filter F7
                                              WFE, WFE P, WFE
                                              2P, FT 11, FT 12, FE
                                              3000/4000





























            266   Filtration
