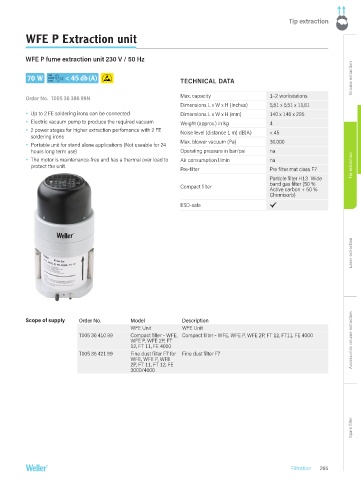

P. 265
Tip extraction
WFE P Extraction unit
WFE P fume extraction unit 230 V / 50 Hz
Volume extraction
70 W LOW < 45 db (A)
TECHNICAL DATA
SOUND
LEVEL
Order No. T005 36 386 99N Max. capacity 1–2 workstations
Dimensions L x W x H (Inches) 5,51 x 5,51 x 11,61
Up to 2 FE soldering irons can be connected Dimensions L x W x H (mm) 140 x 140 x 295
Electric vacuum pump to produce the required vacuum Weight (approx.) in kg 4
2 power stages for higher extraction perfomance with 2 FE Noise level (distance 1 m) dB(A) < 45
soldering irons
Portable unit for stand alone applications (Not useable for 24 Max. blower vacuum (Pa) 30.000
hours long term use) Operating pressure in bar/psi na
The motor is maintenance-free and has a thermal over load to Air consumption l/min na
protect the unit. Tip extraction
Pre-filter Pre filter mat class F7
Particle filter H13 Wide
Compact filter band gas filter (50 %
Active carbon + 50 %
Chemisorb)
ESD-safe .
Laser extraction
Scope of supply Order No. Model Description
WFE Unit WFE Unit
T005 36 410 99 Compact filter - WFE, Compact filter - WFE, WFE P, WFE 2P, FT 12, FT11, FE 4000
WFE P, WFE 2P, FT Accessories volume extraction
12, FT 11, FE 4000
T005 36 421 99 Fine dust filter F7 for Fine dust filter F7
WFE, WFE P, WFE
2P, FT 11, FT 12, FE
3000/4000
Spare filter
Filtration 265
