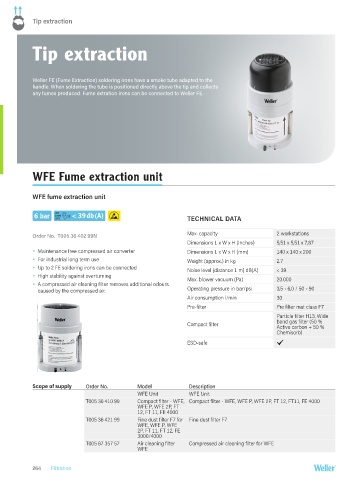

P. 264
Filtration
Tip extraction
Tip extraction
Weller FE (Fume Extraction) soldering irons have a smoke tube adapted to the
handle. When soldering the tube is positioned directly above the tip and collects
any fumes produced. Fume extration irons can be connected to Weller FE.
WFE Fume extraction unit
WFE fume extraction unit
6 bar LOW < 39 db (A) TECHNICAL DATA
SOUND
LEVEL
Order No. T005 36 402 99N Max. capacity 2 workstations
Dimensions L x W x H (Inches) 5,51 x 5,51 x 7,87
Maintenance free compressed air converter Dimensions L x W x H (mm) 140 x 140 x 200
For industrial long term use Weight (approx.) in kg 2.7
Up to 2 FE soldering irons can be connected Noise level (distance 1 m) dB(A) < 39
High stability against overturning Max. blower vacuum (Pa) 20.000
A compressed air cleaning filter removes additional odours
caused by the compressed air. Operating pressure in bar/psi 3,5 - 6,0 / 50 - 90
Air consumption l/min 30
Pre-filter Pre filter mat class F7
Particle filter H13, Wide
Compact filter band gas filter (50 %
Active carbon + 50 %
Chemisorb)
ESD-safe .
Scope of supply Order No. Model Description
WFE Unit WFE Unit
T005 36 410 99 Compact filter - WFE, Compact filter - WFE, WFE P, WFE 2P, FT 12, FT11, FE 4000
WFE P, WFE 2P, FT
12, FT 11, FE 4000
T005 36 421 99 Fine dust filter F7 for Fine dust filter F7
WFE, WFE P, WFE
2P, FT 11, FT 12, FE
3000/4000
T005 87 357 57 Air cleaning filter Compressed air cleaning filter for WFE
WFE
