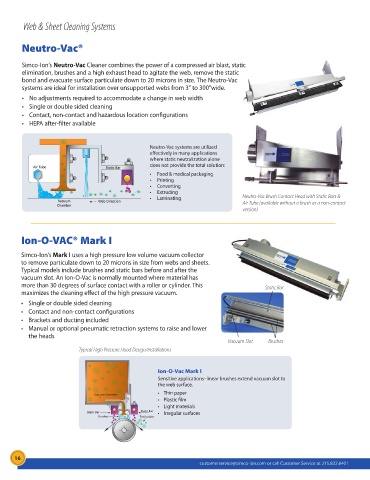

Web & Sheet Cleaning Systems


        Neutro-Vac®


        Simco-Ion’s Neutro-Vac Cleaner combines the power of a compressed air blast, static
        elimination, brushes and a high exhaust head to agitate the web, remove the static
        bond and evacuate surface particulate down to 20 microns in size. The Neutro-Vac
        systems are ideal for installation over unsupported webs from 3” to 300”wide.
        •   No adjustments required to accommodate a change in web width
        •   Single or double sided cleaning
        •   Contact, non-contact and hazardous location con gurations
        •   HEPA after- lter available



                                                   Neutro-Vac systems are utilized
                                                   e ectively in many applications
                                                   where static neutralization alone
                                                   does not provide the total solution:
                                                   •   Food & medical packaging
                                                   •   Printing
                                                   •   Converting
                                                   •   Extruding
                                                   •   Laminating                Neutro-Vac Brush Contact Head with Static Bars &
                                                                                 Air Tube (available without a brush as a non-contact
                                                                                 version)




        Ion-O-VAC® Mark I


        Simco-Ion’s Mark I uses a high pressure low volume vacuum collector
        to remove particulate down to 20 microns in size from webs and sheets.
        Typical models include brushes and static bars before and after the
        vacuum slot. An Ion-O-Vac is normally mounted where material has
        more than 30 degrees of surface contact with a roller or cylinder. This          Static Bar
        maximizes the cleaning e ect of the high pressure vacuum.
        •   Single or double sided cleaning
        •   Contact and non-contact con gurations
        •   Brackets and ducting included
        •   Manual or optional pneumatic retraction systems to raise and lower
          the heads
                                                                            Vacuum Slot   Brushes
                           Typical High Pressure Hood Design/Installations


                                                     Ion-O-Vac Mark I
                                                     Sensitive applications–linear brushes extend vacuum slot to
                                                     the web surface.
                                                     •   Thin paper
                                                     •   Plastic  lm
                                                     •   Light materials
                                                     •   Irregular surfaces








      16
                                                                   customerservice@simco-ion.com or call Customer Service at 215.822.6401
