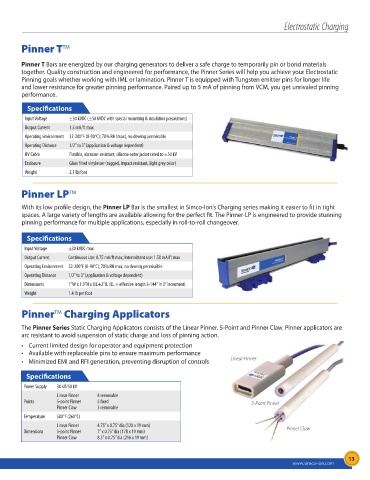

Electrostatic Charging

Pinner T TM

Pinner T Bars are energized by our charging generators to deliver a safe charge to temporarily pin or bond materials
together. Quality construction and engineered for performance, the Pinner Series will help you achieve your Electrostatic
Pinning goals whether working with IML or lamination. Pinner T is equipped with Tungsten emitter pins for longer life
and lower resistance for greater pinning performance. Paired up to 5 mA of pinning from VCM, you get unrivaled pinning
performance.
Speci cations

Input Voltage ±30 kVDC (±50 kVDC with special mounting & insulation precautions)
Output Current 1.5 mA/ft max
Operating Environment 32-200°F (0-90°C); 70% RH (max), no dewing permissible
Operating Distance 1/2” to 3” (application & voltage dependent)
HV Cable Flexible, abrasion-resistant, silicone outer jacket rated to ±50 kV
Enclosure Glass lled vinylester (rugged, impact resistant, light grey color)
Weight 2.1 lb/foot

Pinner LP TM

With its low pro le design, the Pinner LP Bar is the smallest in Simco-Ion’s Charging series making it easier to t in tight
spaces. A large variety of lengths are available allowing for the perfect t. The Pinner-LP is engineered to provide stunning
pinning performance for multiple applications, especially in roll-to-roll changeover.

Speci cations
Input Voltage ±30 kVDC max
Output Current Continuous Use: 0.75 mA/ft max; Intermittent use: 1.50 mA/ft max
Operating Environment 32-200°F (0-90°C); 70% RH max, no dewing permissible
Operating Distance 1/2” to 3” (application & voltage dependent)
Dimensions 1”W x 1.9”H x (EL+2”)L (EL = e ective length 3-144” in 3” increment)
Weight 1.4 lb per foot

Pinner Charging Applicators
TM

The Pinner Series Static Charging Applicators consists of the Linear Pinner, 5-Point and Pinner Claw. Pinner applicators are
arc resistant to avoid suspension of static charge and loss of pinning action.
• Current limited design for operator and equipment protection
• Available with replaceable pins to ensure maximum performance
• Minimized EMI and RFI generation, preventing disruption of controls Linear Pinner

Speci cations
Power Supply 30 kV/50 kV
Linear Pinner 4 removable
Points 5-point Pinner 5 xed 5-Point Pinner
Pinner Claw 3 removable
Temperature 500°F (260°C)
Linear Pinner 4.75” x 0.75” dia (120 x 19 mm)
Dimensions 5-point Pinner 7” x 0.75” dia (178 x 19 mm) Pinner Claw
Pinner Claw 8.5” x 0.75” dia (216 x 19 mm)

13
