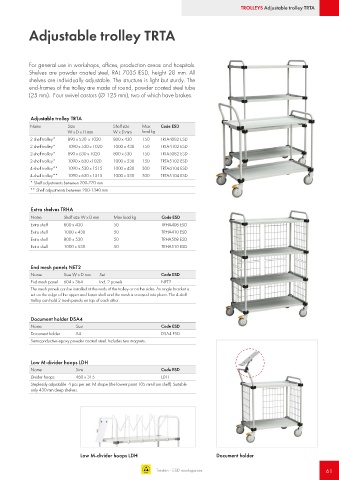

TROLLEYS Adjustable trolley TRTA



           Adjustable trolley TRTA






           For general use in workshops, offices, production areas and hospitals.
           Shelves are powder coated steel, RAL 7035 ESD, height 28 mm. All
           shelves are individually adjustable. The structure is light but sturdy. The
           end-frames of the trolley are made of round, powder coated steel tube
           (25 mm).  Four swivel castors (Ø 125 mm), two of which have brakes.



            Adjustable trolley TRTA
            Name         Size            Shelf size   Max   Code ESD
                         W x D x H mm    W x D mm  load kg
            2-shelf trolley*  890 x 530  x 1020  800 x 430  150  TRTA4082 ESD
            2-shelf trolley*  1090 x 530 x 1020  1000 x 430  150  TRTA4102 ESD
            2-shelf trolley*  890 x 630 x 1020  800 x 530  150  TRTA5082 ESD
            2-shelf trolley*  1090 x 630 x1020  1000 x 530  150  TRTA5102 ESD
            4-shelf trolley**  1090 x 530 x 1515  1000 x 430  300  TRTA4104 ESD
            4-shelf trolley**  1090 x 630 x 1515  1000 x 530  300  TRTA5104 ESD
            * Shelf adjustments between 200-770 mm
            ** Shelf adjustments between 200-1340 mm


            Extra shelves TRHA
            Name       Shelf size W x D mm  Max load kg   Code ESD
            Extra shelf  800 x 430       50               TRHA408 ESD
            Extra shelf  1000 x 430      50               TRHA410 ESD
            Extra shelf  800 x 530       50               TRHA508 ESD
            Extra shelf  1000 x 530      50               TRHA510 ESD


            End mesh panels NET2
            Name       Size W x D mm  Set                 Code ESD
            End mesh panel  604 x 364  Incl. 2 panels     NET2
            The mesh panels can be installed at the ends of the trolley or on the sides. An angle bracket is
            set on the edge of the upper and lower shelf and the mesh is screwed into place. The 4-shelf
            trolley can hold 2 mesh panels on top of each other.


            Document holder DSA4
            Name            Size                          Code ESD
            Document holder  A4                           DSA4 ESD
            Semiconductive epoxy powder coated steel. Includes two magnets.



            Low M-divider hoops LDH
            Name            Size                          Code ESD
            Divider hoops   460 x 315                     LDH
            Steplessly adjustable. 4 pcs per set. M-shape (the lowest point 105 mm from shelf). Suitable
            only 430 mm deep shelves.












                             Low M-divider hoops LDH                         Document holder
