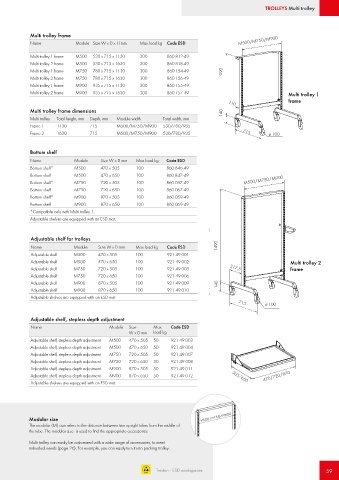

Page 59 - Treston workspaces

TROLLEYS Multi trolley

Multi trolley frame
Name Module Size W x D x H mm Max load kg Code ESD M500/M750/M900

Multi trolley 1 frame M500 530 x 715 x 1130 300 860 812-49
Multi trolley 2 frame M500 530 x 715 x 1630 300 860 818-49
Multi trolley 1 frame M750 780 x 715 x 1130 300 860 154-49 990
Multi trolley 2 frame M750 780 x 715 x 1630 300 860 156-49
Multi trolley 1 frame M900 935 x 715 x 1130 300 860 155-49
Multi trolley 2 frame M900 935 x 715 x 1630 300 860 157-49 Multi trolley 1
frame
110
Multi trolley frame dimensions 140
Multi trolley Total height, mm Depth, mm Module width Total width, mm
Frame 1 1130 715 M500/M750/M900 530/780/935
Frame 2 1630 715 M500/M750/M900 530/780/935 715 ø 100

Bottom shelf
Name Module Size W x D mm Max load kg Code ESD
Bottom shelf* M500 470 x 505 100 860 846-49
Bottom shelf M500 470 x 650 100 860 847-49
Bottom shelf* M750 720 x 505 100 860 057-49 M500/M750/M900
Bottom shelf M750 720 x 650 100 860 067-49
Bottom shelf* M900 870 x 505 100 860 059-49
Bottom shelf M900 870 x 650 100 860 069-49
*Compatible only with Multi trolley 1.
Adjustable shelves are equipped with an ESD mat.

Adjustable shelf for trolleys
1490
Name Module Size W x D mm Max load kg Code ESD
Adjustable shelf M500 470 x 505 100 921 49 001
Adjustable shelf M500 470 x 650 100 921 49 002 Multi trolley 2
Adjustable shelf M750 720 x 505 100 921 49 005 317,5 frame
Adjustable shelf M750 720 x 650 100 921 49 006
Adjustable shelf M900 870 x 505 100 921 49 009 140
Adjustable shelf M900 870 x 650 100 921 49 010
Adjustable shelves are equipped with an ESD mat.
715
ø 100
Adjustable shelf, stepless depth adjustment
Name Module Size Max Code ESD
W x D mm load kg
Adjustable shelf, stepless depth adjustment M500 470 x 505 50 921 49 003
Multi trolley 2 Adjustable shelf, stepless depth adjustment M500 470 x 650 50 921 49 004
Adjustable shelf, stepless depth adjustment M750 720 x 505 50 921 49 007
Adjustable shelf, stepless depth adjustment M750 720 x 650 50 921 49 008
Adjustable shelf, stepless depth adjustment M900 870 x 505 50 921 49 011
Adjustable shelf, stepless depth adjustment M900 870 x 650 50 921 49 012 505/650 470/720/870
Adjustable shelves are equipped with an ESD mat.

Modular size
The modular (M) size refers to the distance between two upright tubes from the middle of
the tube. The modular size is used to find the appropriate accessories.
Multi trolley can easily be customised with a wide range of accessories, to meet
individual needs (page 26). For example, you can easily turn it into packing trolley.

Treston - ESD workspaces 59
