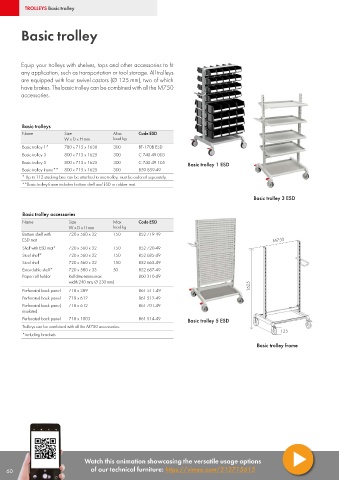

Page 60 - Treston workspaces
P. 60

TROLLEYS Basic trolley



        Basic trolley






        Equip your trolleys with shelves, tops and other accessories to fit
        any application, such as transportation or tool storage. All trolleys
        are equipped with four swivel castors (Ø 125 mm), two of which
        have brakes. The basic trolley can be combined with all the M750
        accessories.





         Basic trolleys
         Name           Size             Max      Code ESD
                        W x D x H mm     load kg
         Basic trolley 1*  780 x 715 x 1630  300  BT-170B ESD
         Basic trolley 3  800 x 715 x 1625  300   C 740 49 003
         Basic trolley 5  800 x 715 x 1625  300   C 740 49 105     Basic trolley 1 ESD
         Basic trolley frame**  800 x 715 x 1625  300  859 859-49
         * Up to 112 stacking bins can be attached to one trolley, must be ordered separately.
         **Basic trolley frame includes bottom shelf and ESD or rubber mat.

                                                                                          Basic trolley 3 ESD

         Basic trolley accessories
         Name            Size            Max      Code ESD
                         W x D x H mm    load kg
         Bottom shelf with   720 x 560 x 32  150  852 719-49
         ESD mat                                                                                 M750
         Shelf with ESD mat*    720 x 560 x 32  150  852 720-49
         Steel shelf*    720 x 560 x 32  150      852 685-49
         Steel shelf     720 x 560 x 32  150      852 665-49
         Extendable shelf*  720 x 580 x 33  50    852 687-49
         Paper roll holder  Roll dimensions max:   860 310-49
                         width 240 mm, Ø 230 mm)
         Perforated back panel  718 x 389         861 511-49                             1625
         Perforated back panel  718 x 612         861 512-49
         Perforated back panel,   718 x 612       861 701-49
         insulated
         Perforated back panel  718 x 1003        861 514-49       Basic trolley 5 ESD
         Trolleys can be combined with all the M750 accessories.
                                                                                                    125
         *including brackets
                                                                                           Basic trolley frame























                               Watch this animation showcasing the versatile usage options
   60                            of our technical furniture: https://vimeo.com/212715615
