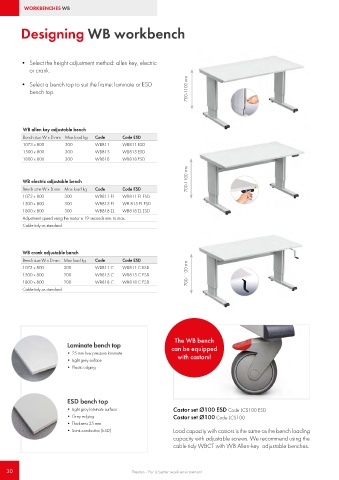

Page 30 - Treston main catalogue 2021

WORKBENCHES WB

Designing WB workbench

• Select the height adjustment method: allen key, electric
or crank.
700-1100 mm
• Select a bench top to suit the frame: laminate or ESD
bench top.

WB allen key adjustable bench
Bench size W x D mm Max load kg Code Code ESD
1073 x 800 300 WB811 WB811 ESD
1500 x 800 300 WB815 WB815 ESD
1800 x 800 300 WB818 WB818 ESD
700-1100 mm

WB electric adjustable bench
Bench size W x D mm Max load kg Code Code ESD
1073 x 800 300 WB811 EL WB811 EL ESD
1500 x 800 300 WB815 EL WB 815 EL ESD
1800 x 800 300 WB818 EL WB818 EL ESD
Adjustment speed using the motor is 19 seconds min. to max.
Cable tidy as standard.

WB crank adjustable bench
Bench size W x D mm Max load kg Code Code ESD
1073 x 800 200 WB811 C WB811 C ESD
1500 x 800 200 WB815 C WB815 C ESD 700-1100 mm
1800 x 800 200 WB818 C WB818 C ESD
Cable tidy as standard.

The WB bench
Laminate bench top can be equipped
• 25 mm low pressure laminate with castors!
• Light grey surface
• Plastic edging

ESD bench top
• Light grey laminate surface Castor set Ø100 ESD Code LCS100 ESD
• Grey edging Castor set Ø100 Code LCS100
• Thickness 25 mm
• Semi-conductive (ESD) Load capacity with castors is the same as the bench loading
capacity with adjustable screws. We recommend using the
cable tidy WBCT with WB Allen-key adjustable benches.

30 Treston - For a better work environment
