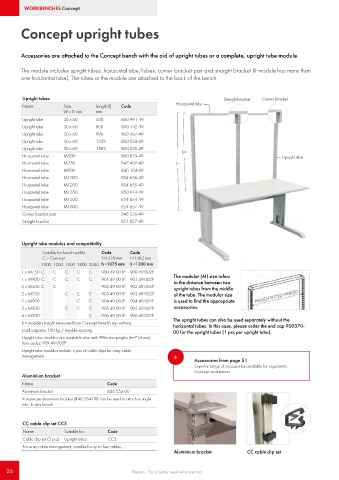

Page 26 - Treston main catalogue 2021

WORKBENCHES Concept

Concept upright tubes

Accessories are attached to the Concept bench with the aid of upright tubes or a complete, upright tube module.

The module includes upright tubes, horizontal tube/tubes, corner bracket pair and straight bracket (if module has more than
one horizontal tube). The tubes or the module are attached to the back of the bench.

Upright tubes Straight bracket Corner bracket
Name Size Length (l) Code Horizontal tube
W x D mm mm
Upright tube 30 x 60 500 860 991-49
Upright tube 30 x 60 800 860 142-49
Upright tube 30 x 60 996 860 367-49
Upright tube 30 x 60 1359 860 024-49
Upright tube 30 x 60 1582 860 025-49
h=
Horizontal tube M500 860 819-49 Upright tube
Horizontal tube M750 847 402-49 l=
Horizontal tube M900 840 104-49
Horizontal tube M1000 854 656-49
Horizontal tube M1200 854 655-49
Horizontal tube M1350 850 914-49
Horizontal tube M1500 854 654-49
Horizontal tube M1800 854 657-49
Corner bracket pair 848 336-49
Straight bracket 851 827-49

Upright tube modules and compatibility
Suitable for bench widths Code Code
C = Concept l =1359 mm l =1582 mm
1000 1200 1500 1800 2000 h =1075 mm h =1300 mm
1 x M750 C C C C C 900 49 001P 900 49 002P
The modular (M) size refers
1 x M900 C C C C C 901 49 001P 901 49 002P
to the distance between two
2 x M500 C C 902 49 001P 902 49 002P upright tubes from the middle
2 x M750 C C C 903 49 001P 903 49 002P of the tube. The modular size
2 x M900 C C 904 49 001P 904 49 002P is used to find the appropriate
3 x M500 C C C 905 49 001P 905 49 002P accessories.
4 x M500 C 906 49 001P 906 49 002P
The upright tubes can also be used separately without the
h = module's height measured from Concept bench's top surface. horizontal tubes. In this case, please order the end cap 900370-
Load capacity 100 kg / module spacing. 00 for the upright tubes (1 pcs per upright tube).
Upright tube modules are available also with 996 mm uprights (h=714 mm).
Item codes: 90X 49 003P.
Upright tube modules include 5 pcs of cable clips for easy cable
management. +
Accessories from page 51
Superior range of accessories available for ergonomic
Concept workstation.
Aluminium bracket
Name Code
Aluminium bracket 846 554-00
A separate aluminium bracket (846 554-00) can be used to attach a single
tube to any bench.

CC cable clip set CC5
Name Suitable for Code
Cable clip set (5 pcs) Upright tubes CC5
For easy cable management, suitable for up to five cables.
Aluminium bracket CC cable clip set
