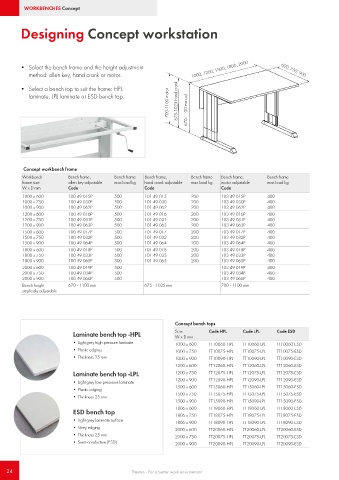

Page 24 - Treston main catalogue 2021

WORKBENCHES Concept

Designing Concept workstation

• Select the bench frame and the height adjustment 1000, 1200, 1500, 1806, 2000 600, 750, 900
method: allen key, hand crank or motor.

• Select a bench top to suit the frame: HPL
700-1100 motor 675-1025 hand crank 670-1100 manual
laminate, LPL laminate or ESD bench top.

Concept workbench frame
Workbench Bench frame, Bench frame Bench frame, Bench frame Bench frame, Bench frame
frame size allen key adjustable max load kg hand crank adjustable max load kg motor adjustable max load kg
W x D mm Code Code Code
1000 x 600 100 49 015P 500 101 49 015 200 103 49 015P 400
1000 x 750 100 49 030P 500 101 49 030 200 103 49 030P 400
1000 x 900 100 49 062P 500 101 49 062 200 103 49 062P 400
1200 x 600 100 49 016P 500 101 49 016 200 103 49 016P 400
1200 x 750 100 49 031P 500 101 49 031 200 103 49 031P 400
1200 x 900 100 49 063P 500 101 49 063 200 103 49 063P 400
1500 x 600 100 49 017P 500 101 49 017 200 103 49 017P 400
1500 x 750 100 49 032P 500 101 49 032 200 103 49 032P 400
1500 x 900 100 49 064P 500 101 49 064 200 103 49 064P 400
1800 x 600 100 49 018P 500 101 49 018 200 103 49 018P 400
1800 x 750 100 49 033P 500 101 49 033 200 103 49 033P 400
1800 x 900 100 49 065P 500 101 49 065 200 103 49 065P 400
2000 x 600 100 49 019P 500 103 49 019P 400
2000 x 750 100 49 034P 500 103 49 034P 400
2000 x 900 100 49 066P 500 103 49 066P 400
Bench height 670 - 1100 mm 675 - 1025 mm 700 - 1100 mm
steplessly adjustable

Concept bench tops
Laminate bench top -HPL Size Code HPL Code LPL Code ESD
W x D mm
• Light grey high pressure laminate 1000 x 600 TT10060-HPL TT10060-LPL TT10060-ESD
• Plastic edging 1000 x 750 TT10075-HPL TT10075-LPL TT10075-ESD
• Thickness 25 mm 1000 x 900 TT10090-HPL TT10090-LPL TT10090-ESD
1200 x 600 TT12060-HPL TT12060-LPL TT12060-ESD
Laminate bench top -LPL 1200 x 750 TT12075-HPL TT12075-LPL TT12075-ESD
1200 x 900 TT12090-HPL TT12090-LPL TT12090-ESD
• Light grey low presssure laminate
1500 x 600 TT15060-HPL TT15060-LPL TT15060-ESD
• Plastic edging
1500 x 750 TT15075-HPL TT15075-LPL TT15075-ESD
• Thickness 25 mm
1500 x 900 TT15090-HPL TT15090-LPL TT15090-ESD
1806 x 600 TT18060-HPL TT18060-LPL TT18060-ESD
ESD bench top
1806 x 750 TT18075-HPL TT18075-LPL TT18075-ESD
• Light grey laminate surface
1806 x 900 TT18090-HPL TT18090-LPL TT18090-ESD
• Grey edging
2000 x 600 TT20060-HPL TT20060-LPL TT20060-ESD
• Thickness 25 mm 2000 x 750 TT20075-HPL TT20075-LPL TT20075-ESD
• Semi-conductive (ESD) 2000 x 900 TT20090-HPL TT20090-LPL TT20090-ESD
