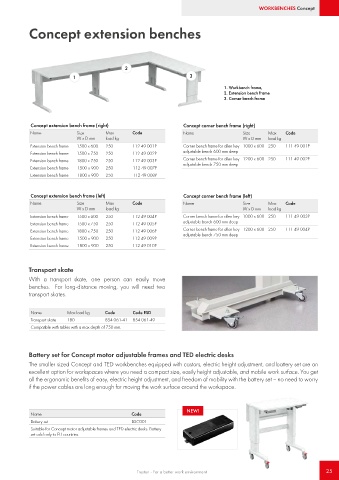

Page 25 - Treston main catalogue 2021

WORKBENCHES Concept

Concept extension benches

2
1 3

1. Workbench frame,
2. Extension bench frame
3. Corner bench frame

Concept extension bench frame (right) Concept corner bench frame (right)
Name Size Max Code Name Size Max Code
W x D mm load kg W x D mm load kg
Extension bench frame 1500 x 600 250 112 49 001P Corner bench frame for allen key 1000 x 600 250 111 49 001P
Extension bench frame 1500 x 750 250 112 49 002P adjustable bench 600 mm deep
Extension bench frame 1800 x 750 250 112 49 003P Corner bench frame for allen key 1200 x 600 250 111 49 002P
adjustable bench 750 mm deep
Extension bench frame 1500 x 900 250 112 49 007P
Extension bench frame 1800 x 900 250 112 49 008P

Concept extension bench frame (left) Concept corner bench frame (left)
Name Size Max Code Name Size Max Code
W x D mm load kg W x D mm load kg
Extension bench frame 1500 x 600 250 112 49 004P Corner bench frame for allen key 1000 x 600 250 111 49 003P
adjustable bench 600 mm deep
Extension bench frame 1500 x 750 250 112 49 005P
Extension bench frame 1800 x 750 250 112 49 006P Corner bench frame for allen key 1200 x 600 250 111 49 004P
adjustable bench 750 mm deep
Extension bench frame 1500 x 900 250 112 49 009P
Extension bench frame 1800 x 900 250 112 49 010P

Transport skate
With a transport skate, one person can easily move
benches. For long-distance moving, you will need two
transport skates.

Name Max load kg Code Code ESD
Transport skate 180 854 061-41 854 061-49
Compatible with tables with a max depth of 750 mm.

Battery set for Concept motor adjustable frames and TED electric desks
The smaller sized Concept and TED workbenches equipped with castors, electric height adjustment, and battery set are an
excellent option for workspaces where you need a compact size, easily height adjustable, and mobile work surface. You get
all the ergonomic benefits of easy, electric height adjustment, and freedom of mobility with the battery set – no need to worry
if the power cables are long enough for moving the work surface around the workspace.

NEW!
Name Code
Battery set BSC001
Suitable for Concept motor adjustable frames and TED electric desks. Battery
set sold only to EU countries.

Treston - For a better work environment 25
