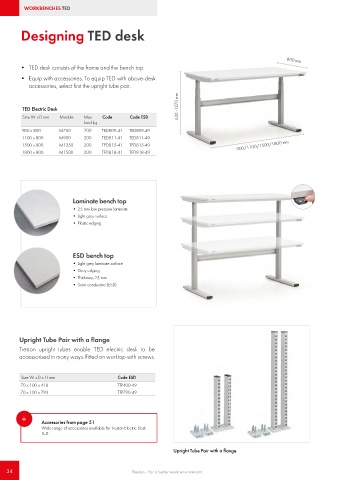

Page 34 - Treston main catalogue 2021

WORKBENCHES TED

Designing TED desk

800 mm
• TED desk consists of the frame and the bench top.
• Equip with accessories. To equip TED with above-desk
accessories, select first the upright tube pair.
630 -1270 mm

TED Electric Desk
Size W x D mm Module Max Code Code ESD
load kg
900 x 800 M750 200 TED809-41 TED809-49
1100 x 800 M900 200 TED811-41 TED811-49
1500 x 800 M1350 200 TED815-41 TED815-49 900/1100/1500/1800 mm
1800 x 800 M1500 200 TED818-41 TED818-49

Laminate bench top
• 25 mm low pressure laminate
• Light grey surface
• Plastic edging

ESD bench top
• Light grey laminate surface
• Grey edging
• Thickness 25 mm
• Semi-conductive (ESD)

Upright Tube Pair with a flange
Treston upright tubes enable TED electric desk to be
accessorised in many ways. Fitted on worktop with screws.

Size W x D x H mm Code ESD
70 x 100 x 418 TTP400-49
70 x 100 x 793 TTP790-49

+ Accessories from page 51

Wide range of accessories available for Treston Electric Desk
TED.

Upright Tube Pair with a flange

34 Treston - For a better work environment
