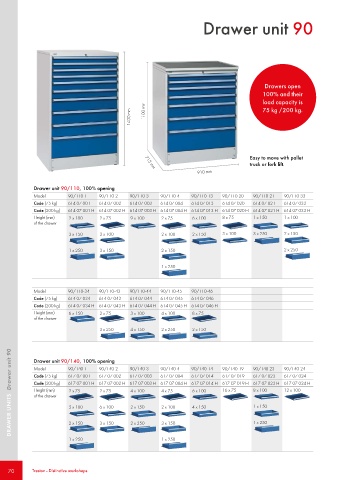

Drawer unit 90

Drawers open
100% and their
load capacity is
1400 mm 1100 mm 75 kg /200 kg.

Easy to move with pallet
truck or fork lift.
715 mm
910 mm

Drawer unit 90/110, 100% opening
Model 90/110-1 90/110-2 90/110-3 90/110-4 90/110-13 90/110-20 90/110-21 90/110-33
Code (75 kg) 614 07 001 614 07 002 614 07 003 614 07 004 614 07 013 614 07 020 614 07 021 614 07 033
Code (200 kg) 614 07 001 H 614 07 002 H 614 07 003 H 614 07 004 H 614 07 013 H 614 07 020 H 614 07 021 H 614 07 033 H
Height (mm) 2 x 100 2 x 75 9 x 100 2 x 75 6 x 100 8 x 75 1 x 150 1 x 100
of the drawer

3 x 150 3 x 100 2 x 100 2 x 150 3 x 100 3 x 250 2 x 150

1 x 250 3 x 150 2 x 150 2 x 250

1 x 250

Model 90/110-34 90/110-43 90/110-44 90/110-45 90/110-46
Code (75 kg) 614 07 034 614 07 043 614 07 044 614 07 045 614 07 046
Code (200 kg) 614 07 034 H 614 07 043 H 614 07 044 H 614 07 045 H 614 07 046 H
Height (mm) 6 x 150 2 x 75 3 x 100 4 x 100 8 x 75
of the drawer

3 x 250 4 x 150 2 x 250 2 x 150

DRAWER UNITS Drawer unit 90 Model 90/140-1 90/140-2 90/140-3 90/140-4 90/140-14 90/140-19 90/140-23 90/140-24
Drawer unit 90/140, 100% opening

617 07 004
617 07 019
617 07 023
617 07 014
617 07 024
617 07 003
617 07 002
617 07 001
Code (75 kg)
617 07 024 H
617 07 001 H
617 07 014 H
617 07 003 H
617 07 019 H
Code (200 kg)
617 07 002 H
617 07 023 H
617 07 004 H
Height (mm)
8 x 100
12 x 100
16 x 75
2 x 75
6 x 100
4 x 75
4 x 100
2 x 75
of the drawer
1 x 150
5 x 100
6 x 100
2 x 100
4 x 150
2 x 150
2 x 150
1 x 250 3 x 150 2 x 250 3 x 150 1 x 250
1 x 250
