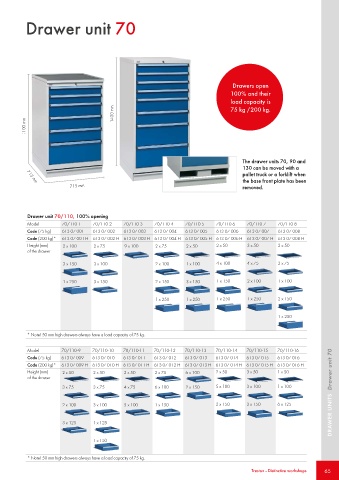

Drawer unit 70

Drawers open
100% and their
load capacity is
1400 mm 75 kg /200 kg.

1100 mm

The drawer units 70, 90 and
130 can be moved with a
pallet truck or a forklift when
the base front plate has been
715 mm
715 mm removed.

Drawer unit 70/110, 100% opening
Model 70/110-1 70/110-2 70/110-3 70/110-4 70/110-5 70/110-6 70/110-7 70/110-8
Code (75 kg) 613 07 001 613 07 002 613 07 003 613 07 004 613 07 005 613 07 006 613 07 007 613 07 008
Code (200 kg)* 613 07 001 H 613 07 002 H 613 07 003 H 613 07 004 H 613 07 005 H 613 07 006 H 613 07 007 H 613 07 008 H
Height (mm) 2 x 100 2 x 75 9 x 100 2 x 75 2 x 50 2 x 50 3 x 50 2 x 50
of the drawer

3 x 150 3 x 100 2 x 100 1 x 100 4 x 100 4 x 75 2 x 75

1 x 250 3 x 150 2 x 150 3 x 150 1 x 150 2 x 100 1 x 100

1 x 250 1 x 250 1 x 250 1 x 250 2 x 150

1 x 250

* Note! 50 mm high drawers always have a load capacity of 75 kg.

Model 70/110-9 70/110-10 70/110-11 70/110-12 70/110-13 70/110-14 70/110-15 70/110-16
DRAWER UNITS Drawer unit 70
Code (75 kg) 613 07 009 613 07 010 613 07 011 613 07 012 613 07 013 613 07 014 613 07 015 613 07 016
Code (200 kg)* 613 07 009 H 613 07 010 H 613 07 011 H 613 07 012 H 613 07 013 H 613 07 014 H 613 07 015 H 613 07 016 H
Height (mm) 2 x 50 2 x 50 2 x 50 2 x 75 6 x 100 2 x 50 3 x 50 1 x 50
of the drawer
3 x 75 3 x 75 4 x 75 6 x 100 2 x 150 5 x 100 3 x 100 1 x 100

2 x 100 3 x 100 5 x 100 1 x 150 2 x 150 3 x 150 6 x 125

3 x 125 1 x 125

1 x 150

* Note! 50 mm high drawers always have a load capacity of 75 kg.
